Intel DH61BF User Manual

Intel Desktop Board DH61BF Technical Product Specification
46
2.2.2.5 Front Panel USB Header

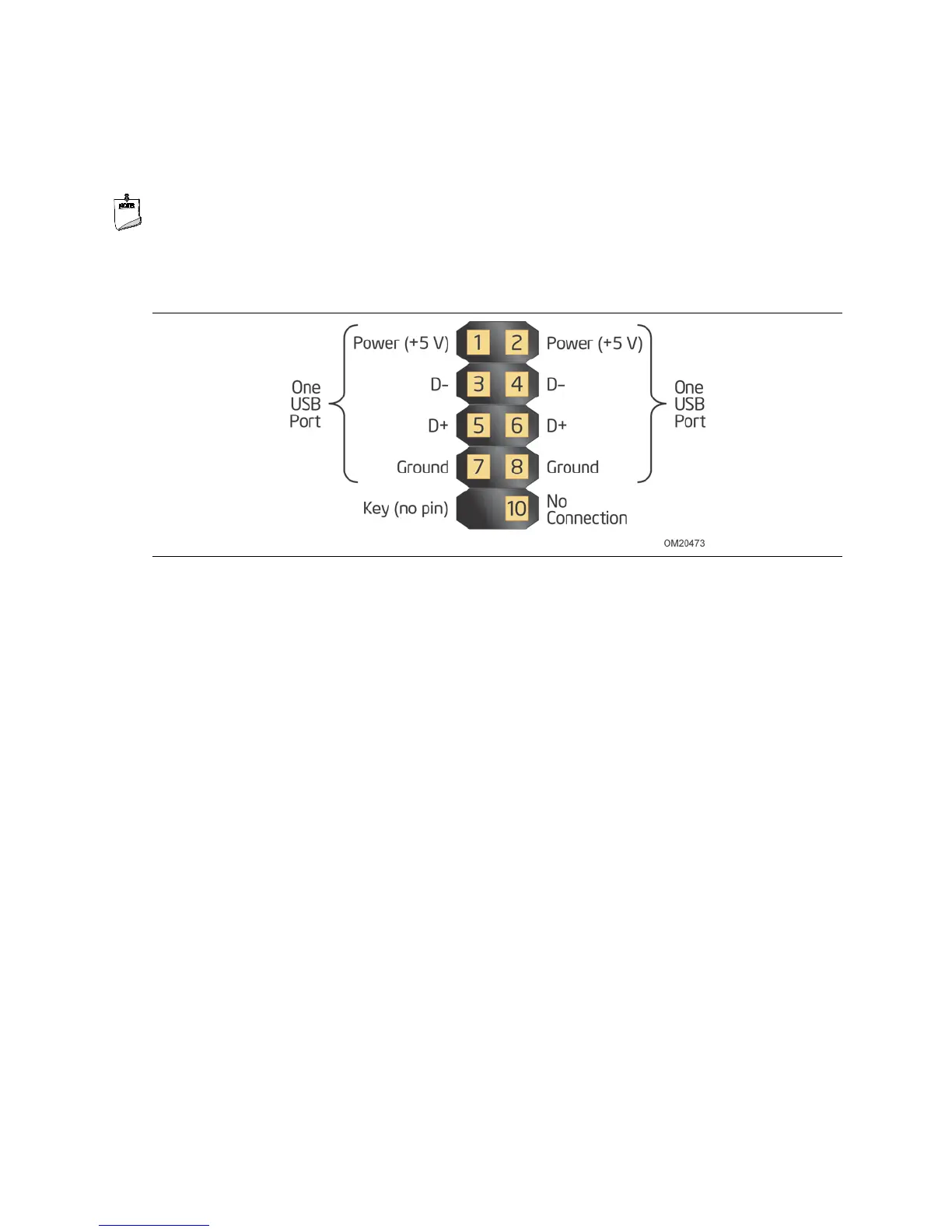

Figure 11 is a connection diagram for the front panel USB header.
NOTE
• The +5 V DC power on the USB header is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.
Figure 11. Connection Diagram for the Front Panel USB Header

Intel DH61BF Specifications

General

Form Factor	microATX
Chipset	Intel H61
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	2
Max Memory	16 GB
PCIe Slots	1 x PCIe 3.0 x16, 2 x PCIe 2.0 x1
USB Ports	4 x USB 2.0
SATA Ports	4
Video Outputs	VGA, DVI-D
BIOS	UEFI
