英特尔台式机主板 DH67BL 产品指南

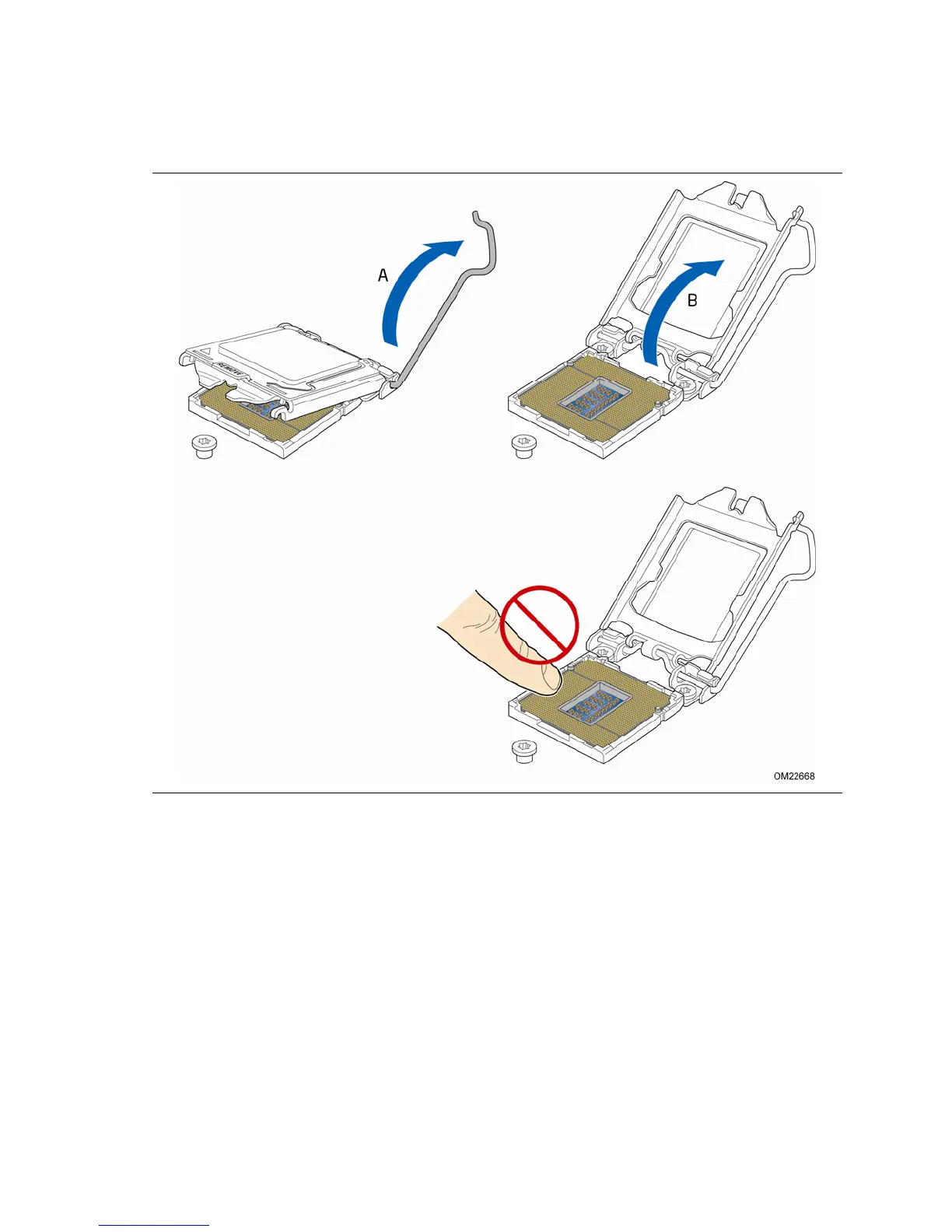

3. 转动插槽拉杆，将压板从插槽上抬起（图 7 中的 A）。确保压板处于完全打开位置
（图 7 中的 B），注意不要损坏其附近组件。切勿触碰插槽触点。
图 7. 抬起压板
32
