英特尔台式机主板 DH67BL 产品指南
安装 DIMM
为确保使用正确的 DIMM，请将 DIMM 插入如图 15 所示的 DDR3 DIMM 插槽内。所有的
小凹口应与 DDR3 DIMM 插槽上的凹口对齐。

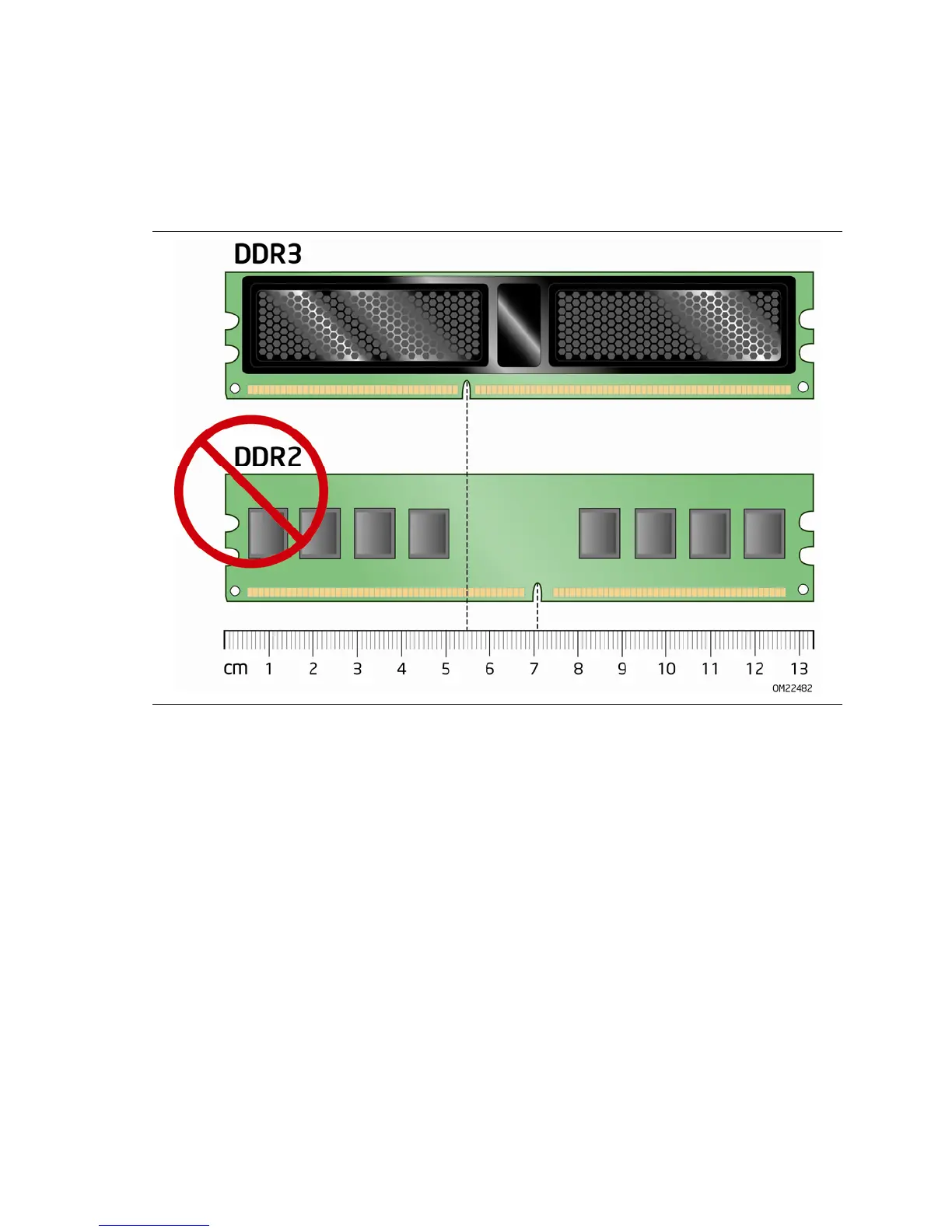

图 15. 使用 DDR3 DIMM
38
