英特尔台式机主板 DH67BL 产品指南
连接机箱风扇和电源系统电缆
连接机箱风扇
将机箱风扇电缆连接到台式机主板上的机箱风扇接头连接器上。图 22 显示了机箱风扇接头连接器的
位置。

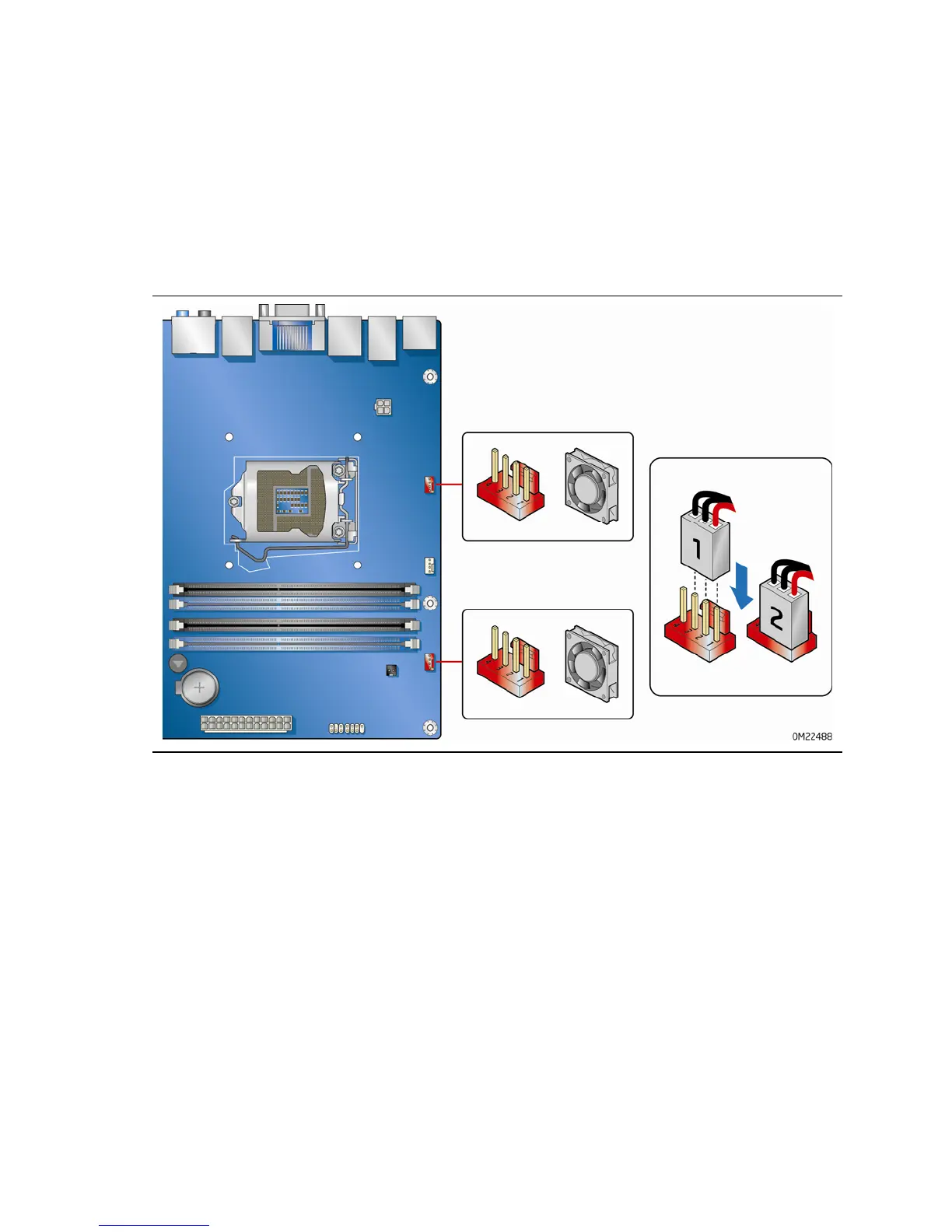

图 22. 机箱风扇接头连接器位置
50
