Intel DH77EB User Manual

Product Description
33
1.10.4 Thermal Monitoring

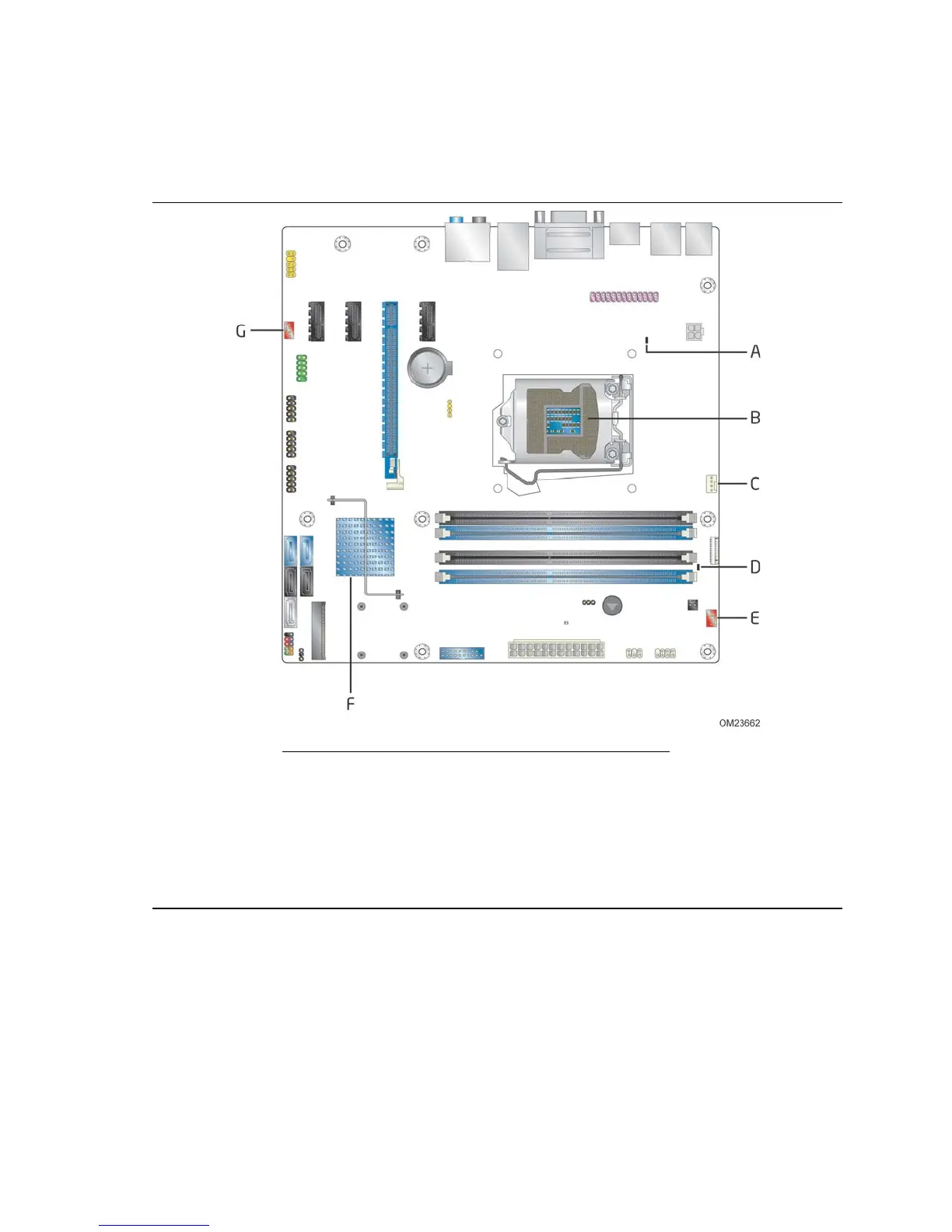

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Thermal diode, located on the VR zone
B Thermal diode, located on the processor die
C Front chassis fan header
D Thermal diode, located on the memory zone
E Processor fan header
F Thermal diode, located on the Intel H77 PCH
G Rear chassis fan header
Figure 6. Thermal Sensors and Fan Headers

Intel DH77EB Specifications

General

Form Factor	ATX
Chipset	Intel H77
Socket	LGA 1155
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16 Slots	1
SATA 6Gb/s Ports	2
SATA 3Gb/s Ports	3
USB 3.0 Ports	4
USB 2.0 Ports	8
Audio	Realtek ALC892
LAN	Intel 82579V
Video Outputs	HDMI, DVI
PCI Express x1 Slots	3 x PCIe 2.0 x1
