Intel Desktop Board DH77EB Technical Product Specification
44
2.2.1 Back Panel Connectors
Figure 9 shows the location of the back panel connectors for the board.
Item Description
A USB 2.0 ports
B USB 2.0 ports
C eSATA connector
D HDMI connector
E DVI-I connector
F DisplayPort connector
G LAN port
H USB 3.0 ports
I Rear surround
J Center channel and LFE
(subwoofer)
K S/PDIF out (optical)
L Line in
M Line out/front speakers
N Mic-in/side surround

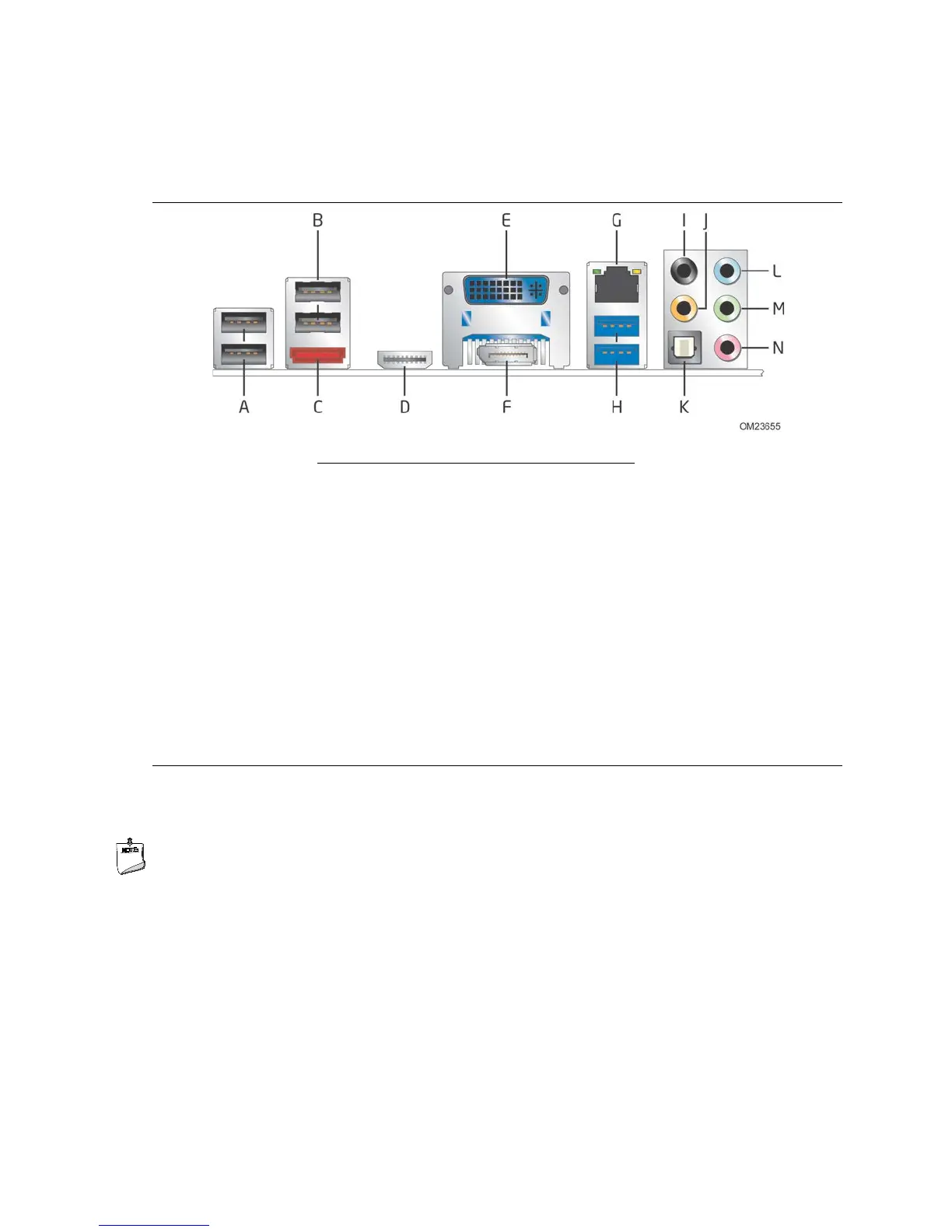

Figure 9. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.
