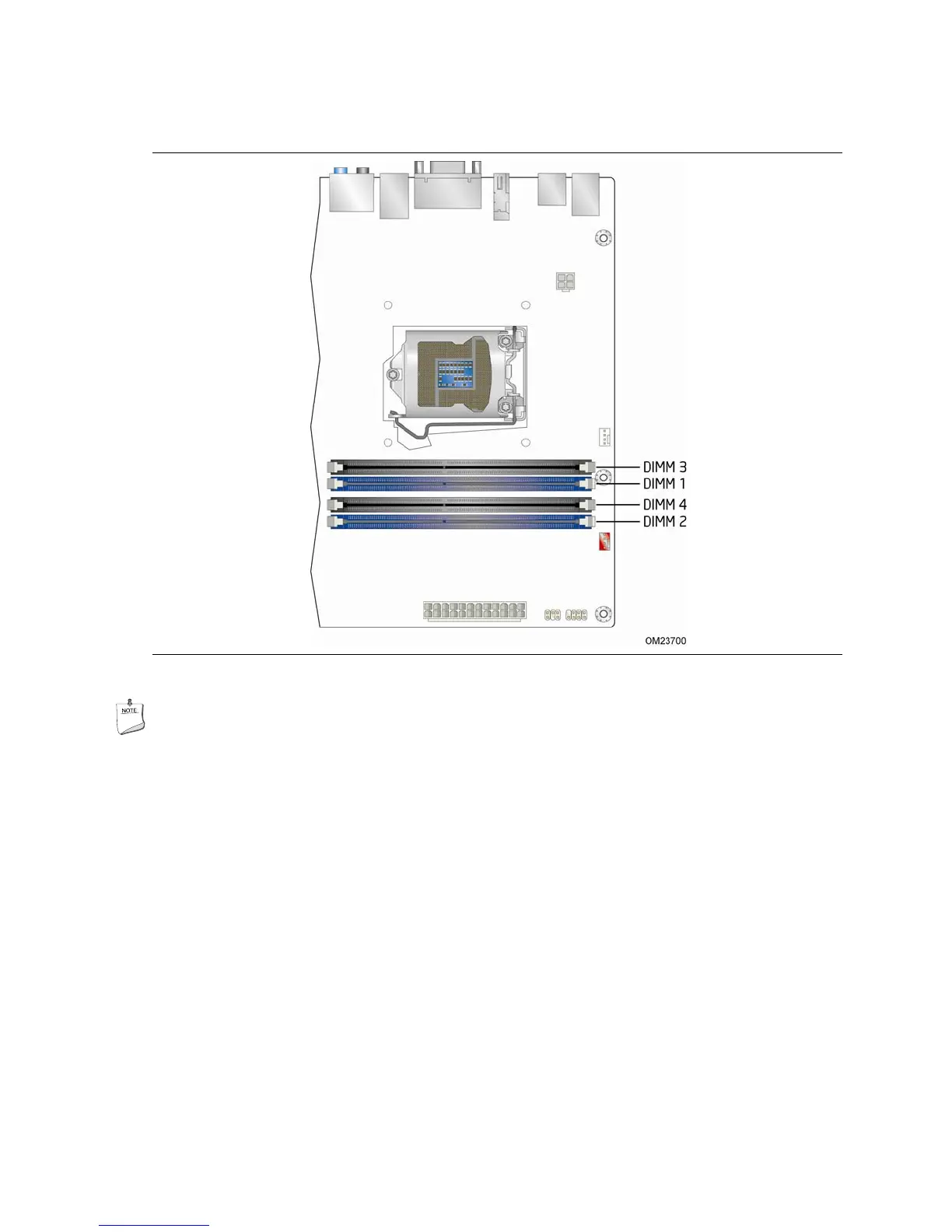

Figure 3 illustrates the memory channel and DIMM configuration.
Figure 3. Memory Channel and DIMM Configuration
NOTE
The DIMM sockets are labeled in installation order from DIMM 1 to DIMM 4. For best
memory performance always install memory in the blue DIMM sockets (DIMM 1 and
DIMM 2) if installing only two DIMMs on your board
