1.9.2 LAN Subsystem Software

LAN software and drivers are available from Intel’s World Wide Web site.

For information about Refer to

Obtaining LAN software and drivers http://downloadcenter.intel.com

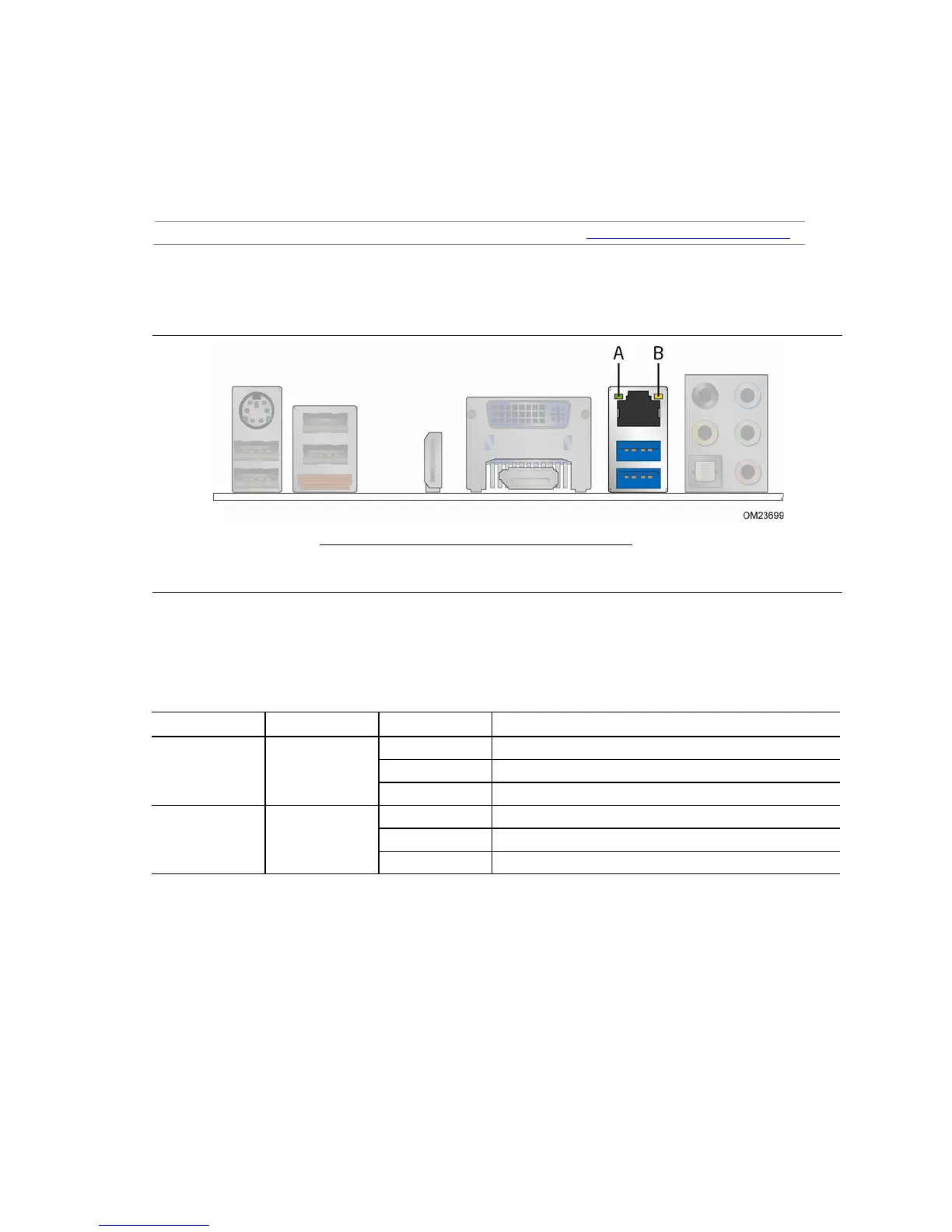

1.9.3 RJ-45 LAN Connector with Integrated LEDs

Two LEDs are built into the RJ-45 LAN connector (shown in Figure 5).

Item Description

A Link LED (Green)

B Data Rate LED (Green/Yellow)

Figure 5. LAN Connector LED Locations

Table 9 describes the LED states when the board is powered up and the LAN

subsystem is operating.

Table 9. LAN Connector LED States

LED LED Color LED State Condition

Link Green

Off LAN link is not established.

On LAN link is established.

Blinking LAN activity is occurring.

Data Rate Green/Yellow

Off 10 Mb/s data rate is selected.

Green 100 Mb/s data rate is selected.

Yellow 1000 Mb/s data rate is selected.
