Product Description
33
1.10.4 Thermal Monitoring

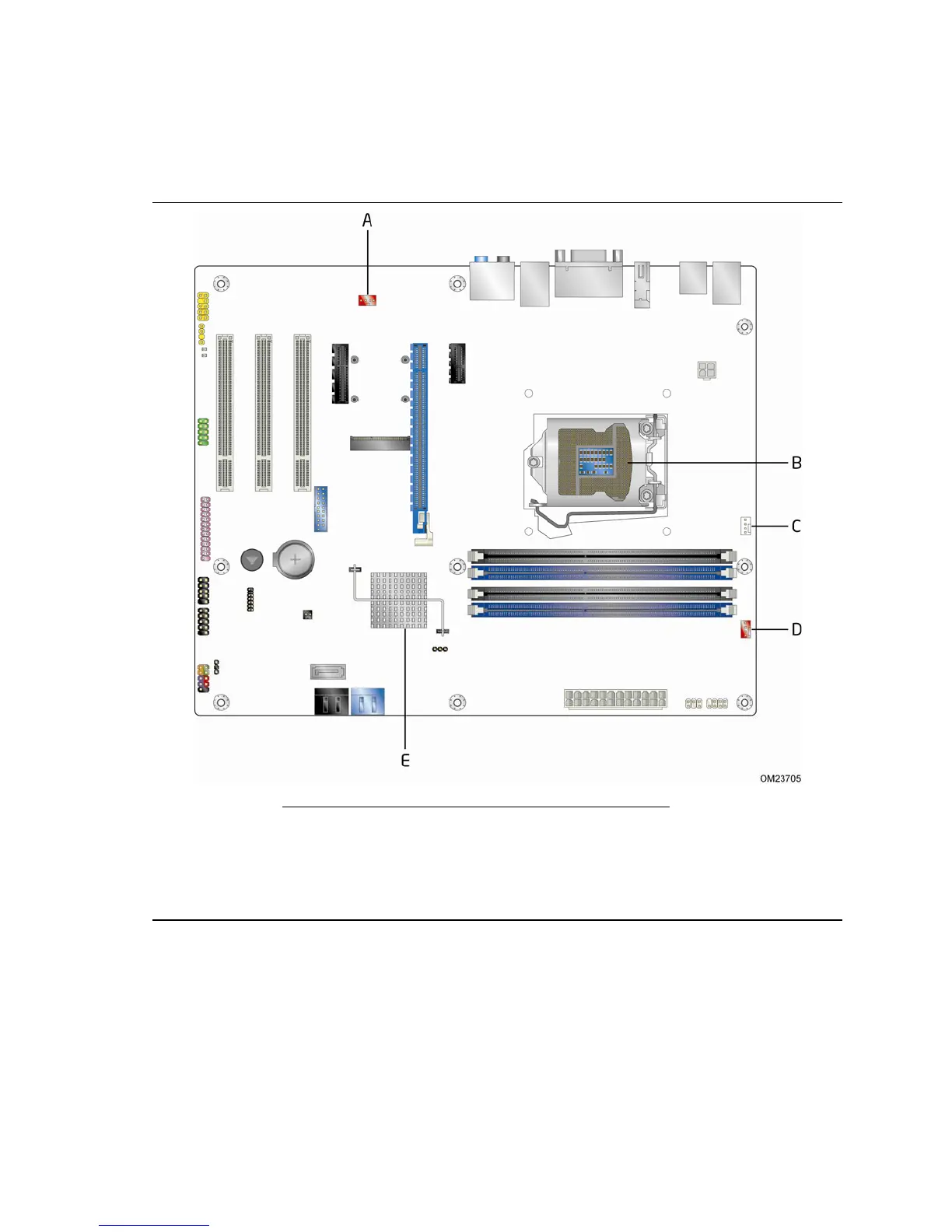

Figure 6 shows the locations of the thermal sensors and fan headers.
Item Description
A Rear chassis fan header
B Thermal diode, located on the processor die
C Processor fan header
D Front chassis fan header
E Thermal diode, located on the Intel H77 PCH
Figure 6. Thermal Sensors and Fan Headers
