Intel Desktop Board DH77KC Technical Product Specification
60
2.4 Mechanical Considerations
2.4.1 Form Factor
The board is designed to fit into an ATX-form-factor chassis. Figure 14 illustrates the
mechanical form factor for the board. Dimensions are given in inches [millimeters].
The outer dimensions are 12 inches by 9.60 inches [304.80 millimeters by
243.84 millimeters]. Location of the I/O connectors and mounting holes are in
compliance with the ATX specification.

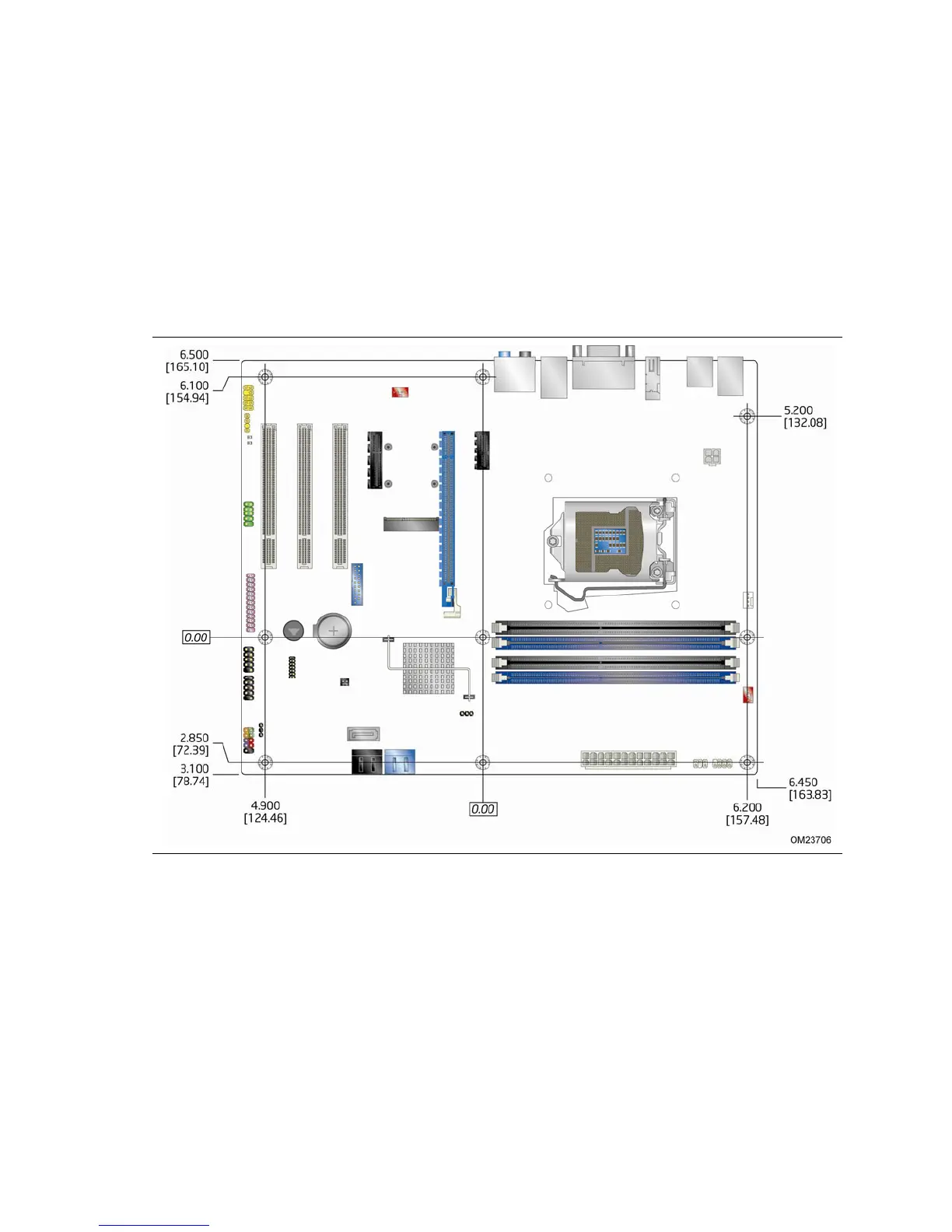

Figure 14. Board Dimensions

Intel DH77KC Specifications

General

Form Factor	ATX
Socket	LGA 1155
Chipset	Intel H77
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16 Slots	1
SATA 6Gb/s Ports	2
USB 3.0 Ports	4
USB 2.0 Ports	8
Network	Gigabit Ethernet
Audio	7.1 Channel HD Audio
Memory Standard	DDR3 1600/1333
SATA 3Gb/s Ports	3
Video Outputs	HDMI, DVI
PCI Express x1 Slots	3 x PCIe 2.0 x1
