Intel DH77KC User Manual

Technical Reference
57
2.2.2.6 Front Panel USB 2.0 Headers
Figure 12 is a connection diagram for the front panel USB 2.0 headers.
NOTE
• The +5 V DC power on the USB headers is fused.
• Use only a front panel USB connector that conforms to the USB 2.0 specification for
high-speed USB devices.

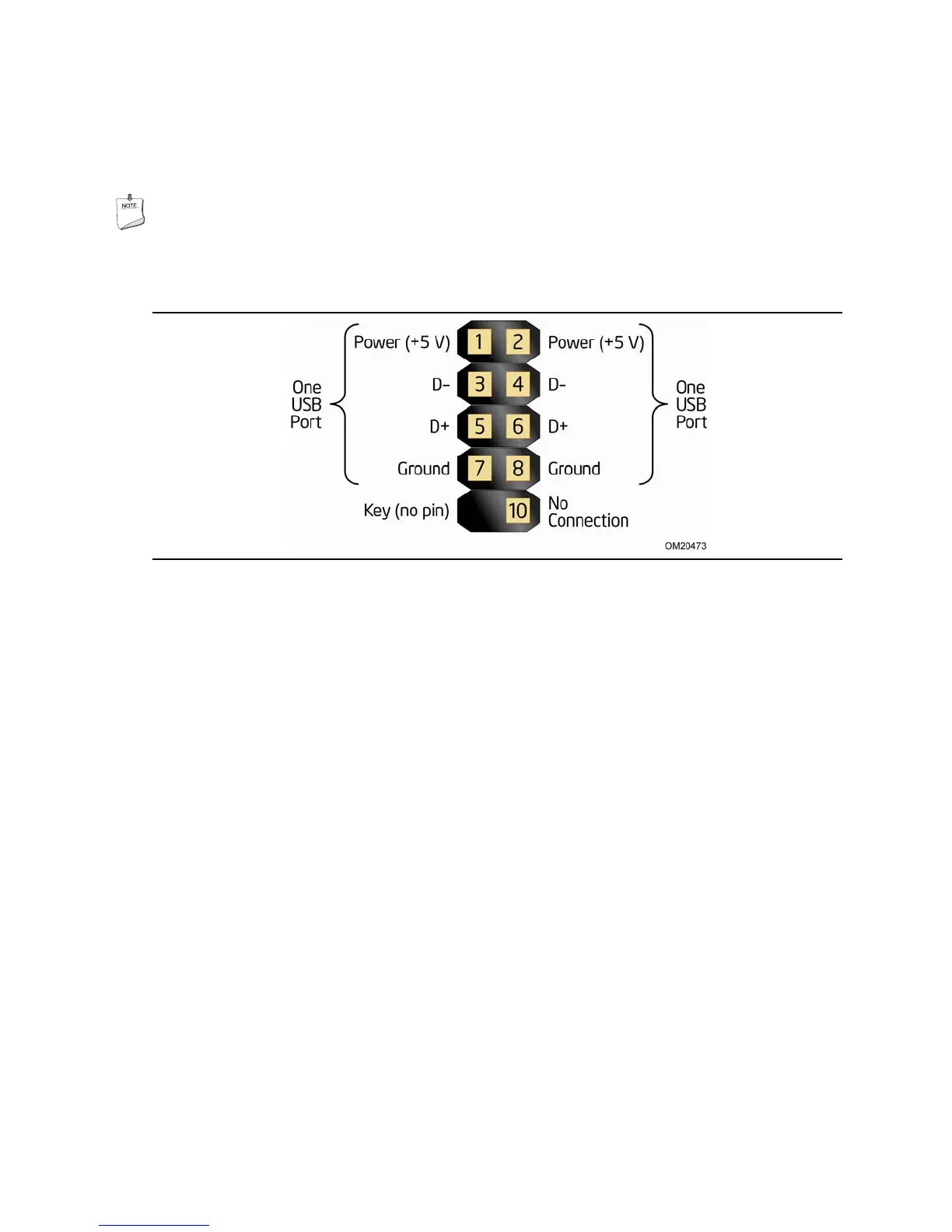

Figure 12. Connection Diagram for Front Panel USB 2.0 Headers

Intel DH77KC Specifications

General

Form Factor	ATX
Socket	LGA 1155
Chipset	Intel H77
Memory Type	DDR3
Memory Slots	4
Max Memory	32 GB
PCI Express x16 Slots	1
SATA 6Gb/s Ports	2
USB 3.0 Ports	4
USB 2.0 Ports	8
Network	Gigabit Ethernet
Audio	7.1 Channel HD Audio
Memory Standard	DDR3 1600/1333
SATA 3Gb/s Ports	3
Video Outputs	HDMI, DVI
PCI Express x1 Slots	3 x PCIe 2.0 x1
