Intel DN2800MT

Intel Desktop Board DN2800MT Product Guide
12
Desktop Board Components

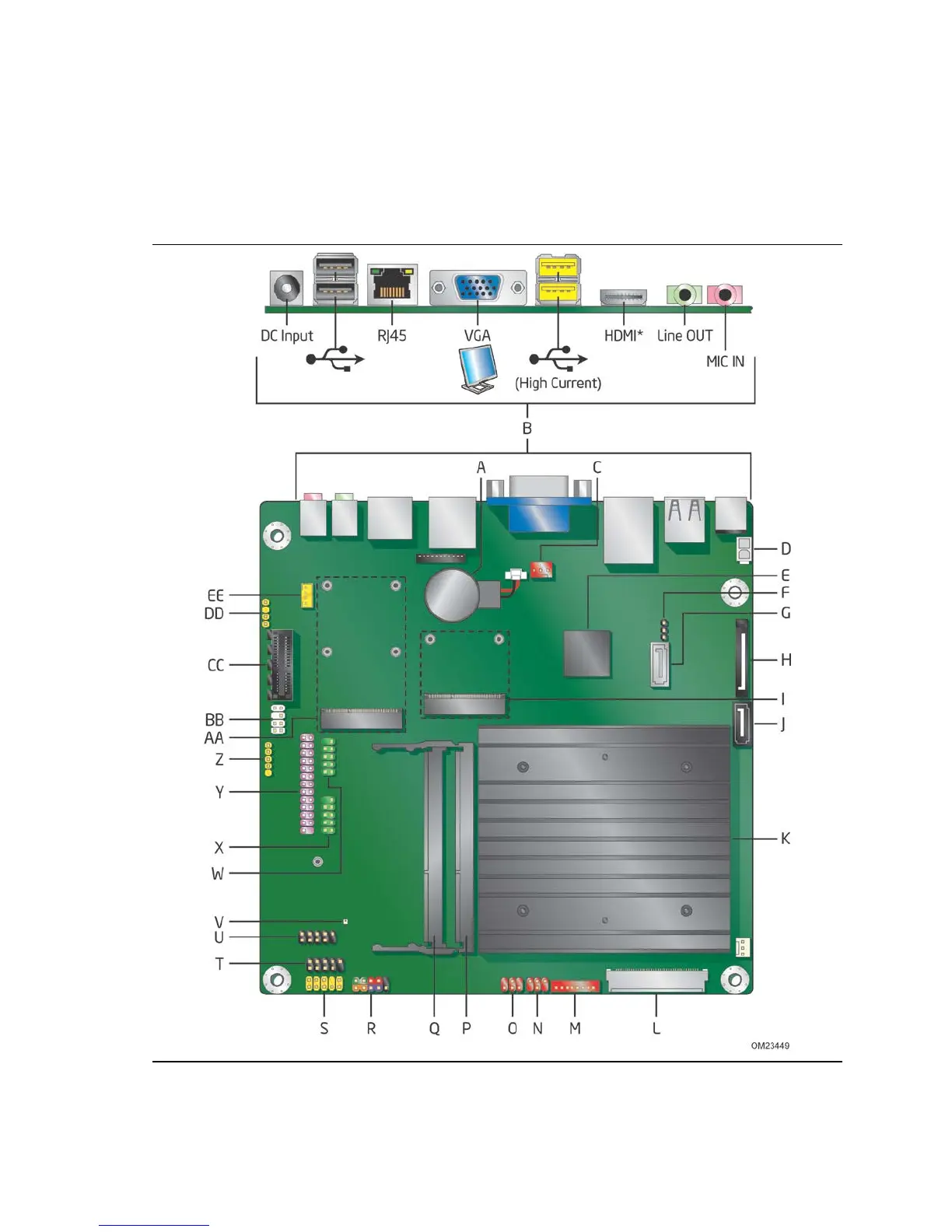

Figure 1 shows the approximate location of the major components on the top side of
Intel Desktop Board DN2800MT.
Figure 1. Intel Desktop Board DN2800MT Components (Top)
