Intel Desktop Board DN2800MT Product Guide
26
Installing a PCI Express Mini Card in the PCI
Express Half-Mini Card Slot
A PCI Express Half-Mini Card can be installed in the Desktop Board’s PCI Express
Half-Mini Card slot.
To install a PCI Express card in this slot, see Figure 9 and follow these steps:
1. Observe the precautions in "Before You Begin" on page 15.
2. Locate the PCI Express Half-Mini Card slot (Figure 1, I).
3. Insert the card into the PCI Express Mini Card connector (Figure 9, A) at a slightly
upward angle.
4. Align the mounting holes and secure the card in place (Figure 9, B).

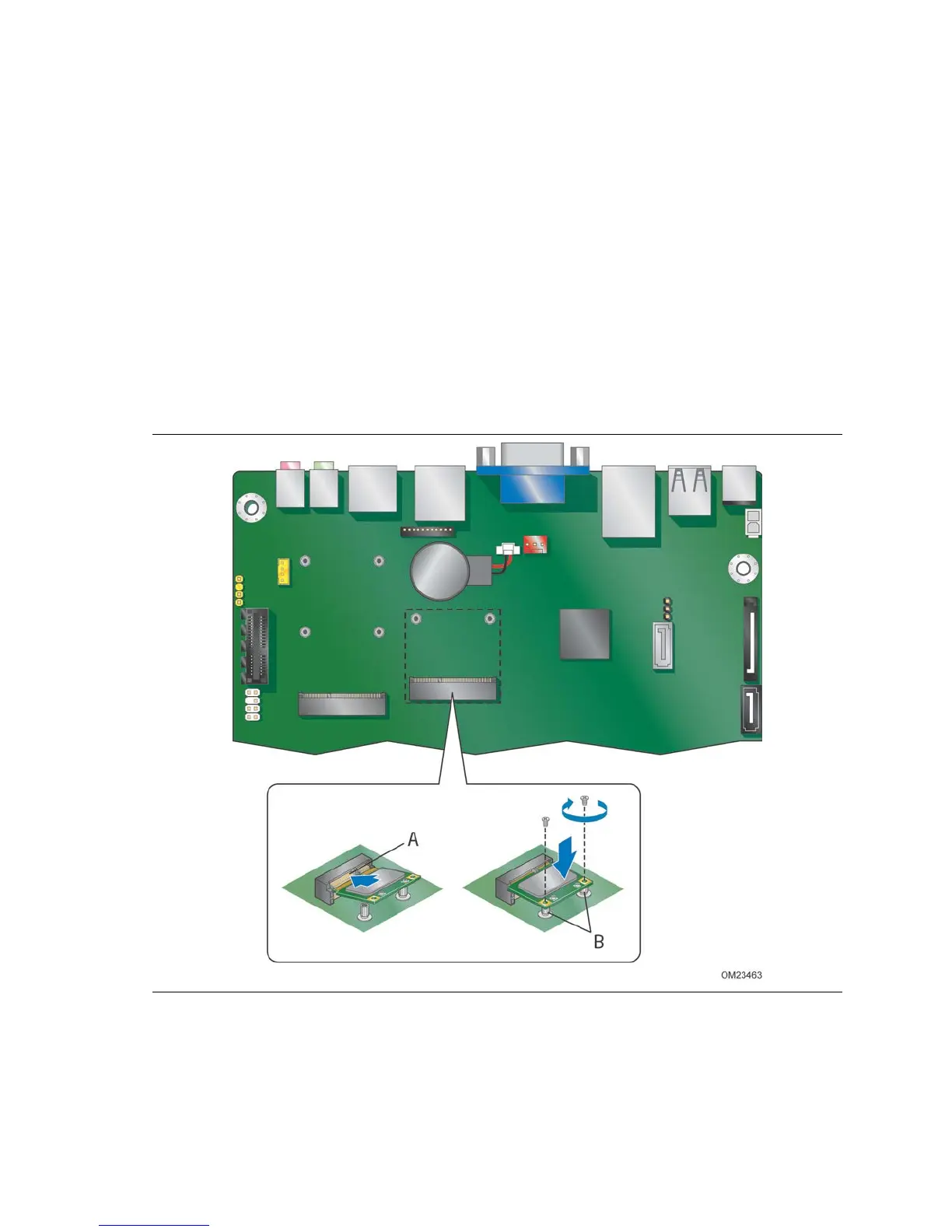

Figure 9. Installing a PCI Express Mini Card in the Half-Mini Card Slot
