Intel Desktop Board DP43TF Product Guide
16
LAN Subsystem
The LAN subsystem includes:
• Intel
®
ICH10
• Intel 82567V Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
• RJ-45 LAN connector with integrated status LEDs
The subsystem features:
• CSMA/CD protocol engine
• LAN connect interface between ICH10 and the LAN controller
• PCI Express power management
For information about LAN software and drivers go to
http://support.intel.com/support/motherboards/desktop
LAN Subsystem Software
For LAN software and drivers, refer to the Intel Desktop Board DP43TF link on Intel’s
World Wide Web site at http://support.intel.com/support/motherboards/desktop
.
LAN Status Indicators
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate the operating states of the LAN.

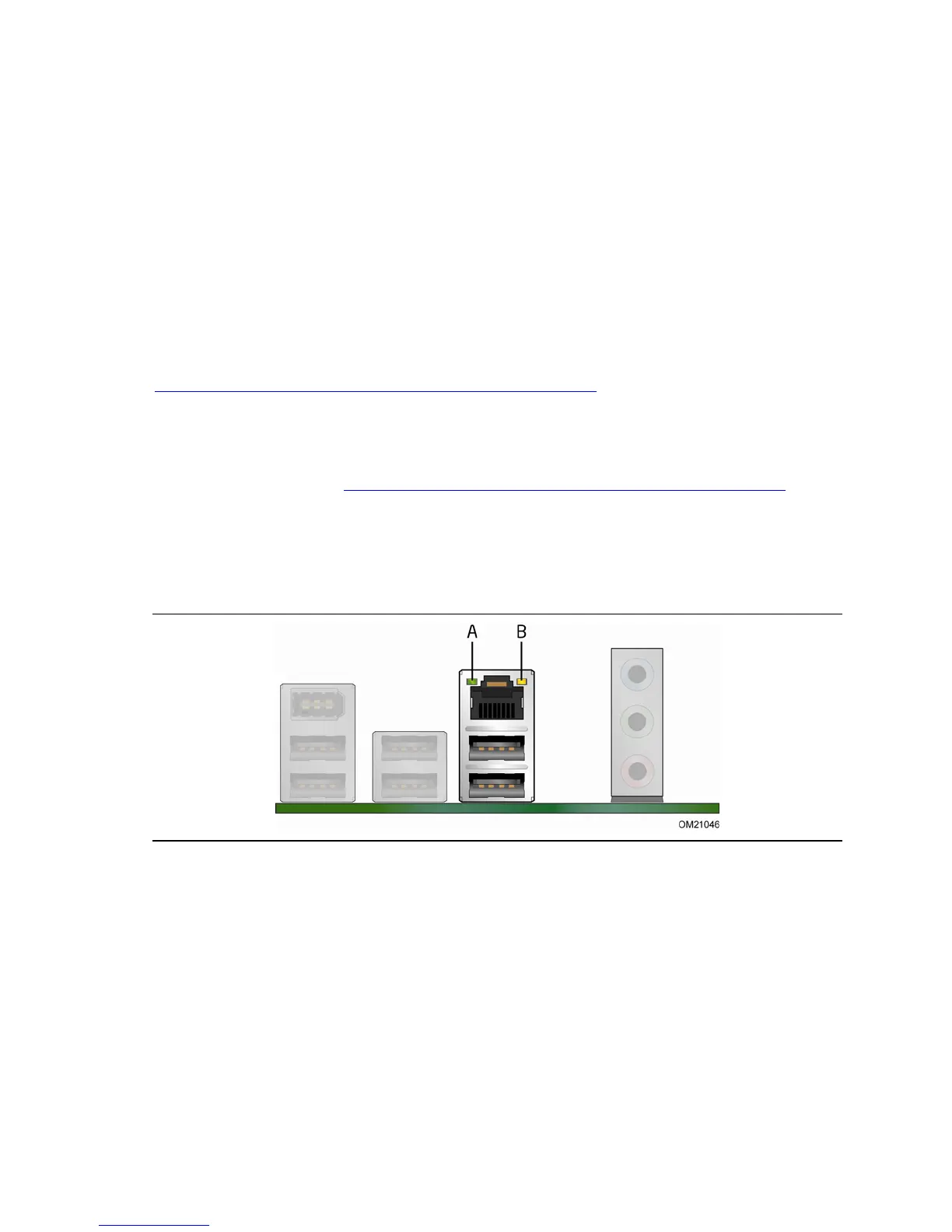

Figure 2. LAN Status LEDs
Table 4 describes the LED states when the board is powered up and the LAN
subsystem is operating.
