Intel Desktop Board DP43TF Product Guide
28
Installing and Removing the Desktop Board
CAUTION
Only qualified technical personnel should do this procedure. Disconnect the computer
from its power source before performing the procedures described here. Failure to
disconnect the power before you open the computer can result in personal injury or
equipment damage.
Refer to your chassis manual for instructions on installing and removing the Desktop
Board.
Figure 5 shows the location of the mounting s
crew holes for Intel Desktop Board
DP43TF.

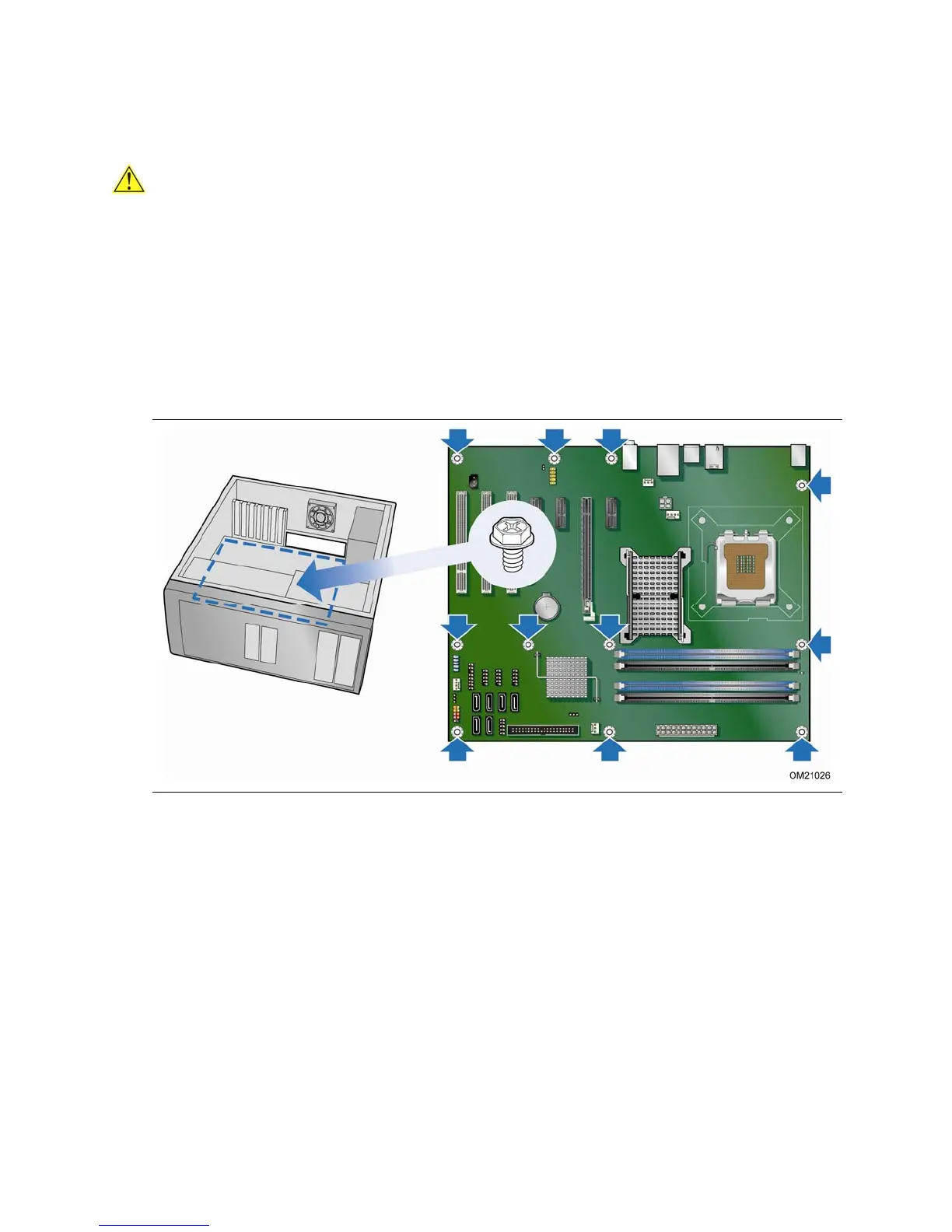

Figure 5. Intel Desktop Board DP43TF Mounting Screw Hole Locations
