Connecting to Internal Headers and
Connectors
Before connecting cables to the internal headers and connectors, observe the
precautions in “Before You Begin” on page 25. Figure 22 shows the location of the
internal headers and connectors
.
Item Description Item Description
A HD Audio Link F
Serial
B S/PDIF G
Front panel
C Chassis intrusion H
Alternate front panel power LED
D Audio
I IEEE 1394a
E USB 2.0 (3)

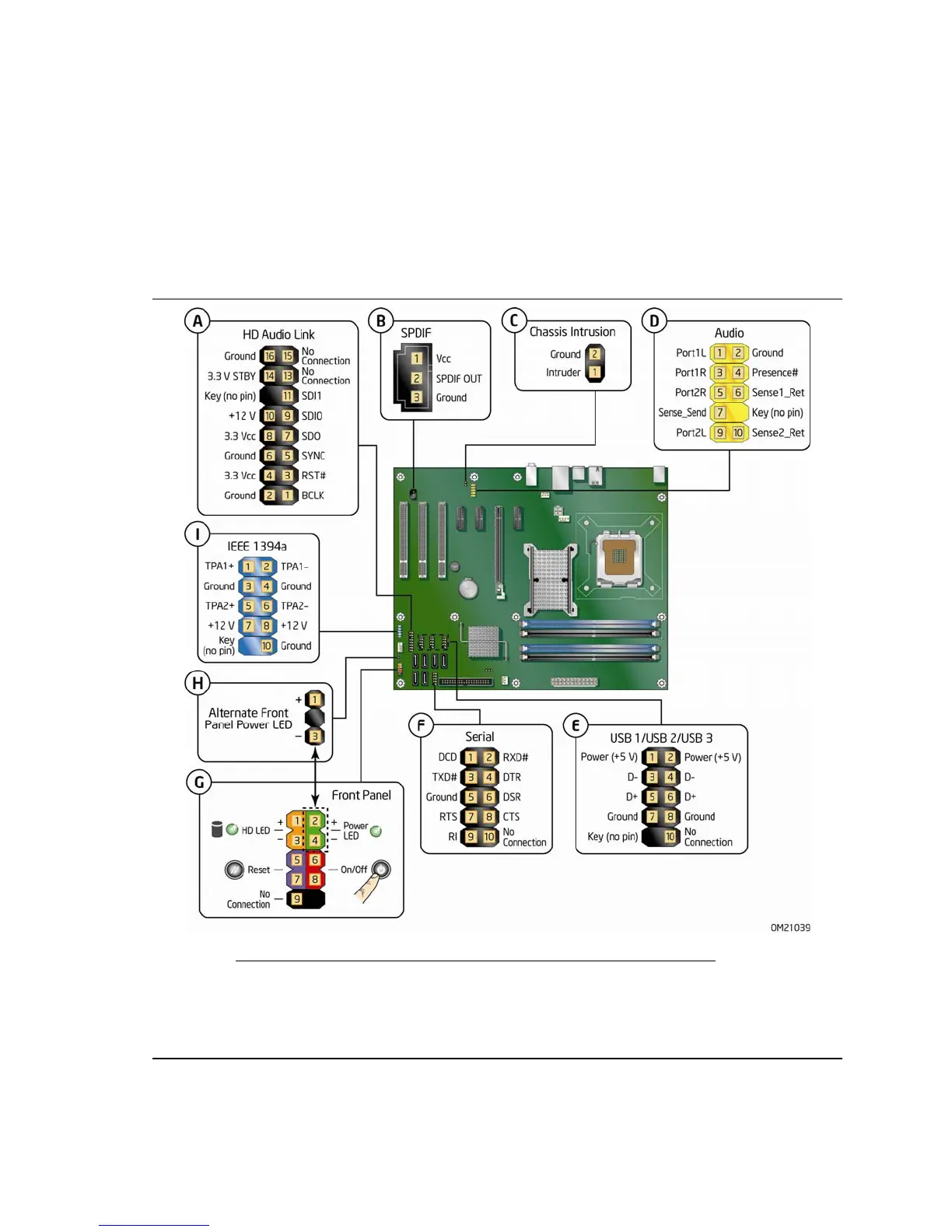

Figure 22. Internal Headers and Connectors
