Desktop Board Features
15
LAN Subsystem
The LAN subsystem includes:
• Intel ICH10R
• Intel 82567LF Gigabit (10/100/1000 Mb/s) Ethernet LAN controller
• RJ-45 LAN connector with integrated status LEDs
The subsystem features:
• CSMA/CD protocol engine
• LAN connect interface between ICH10R and the LAN controller
• PCI Express power management
For information about LAN software and drivers go to
http://support.intel.com/support/motherboards/desktop
Two LEDs are built into the RJ-45 LAN connector located on the back panel (see
Figure 2). These LEDs indicate th
e statu
s of the LAN.

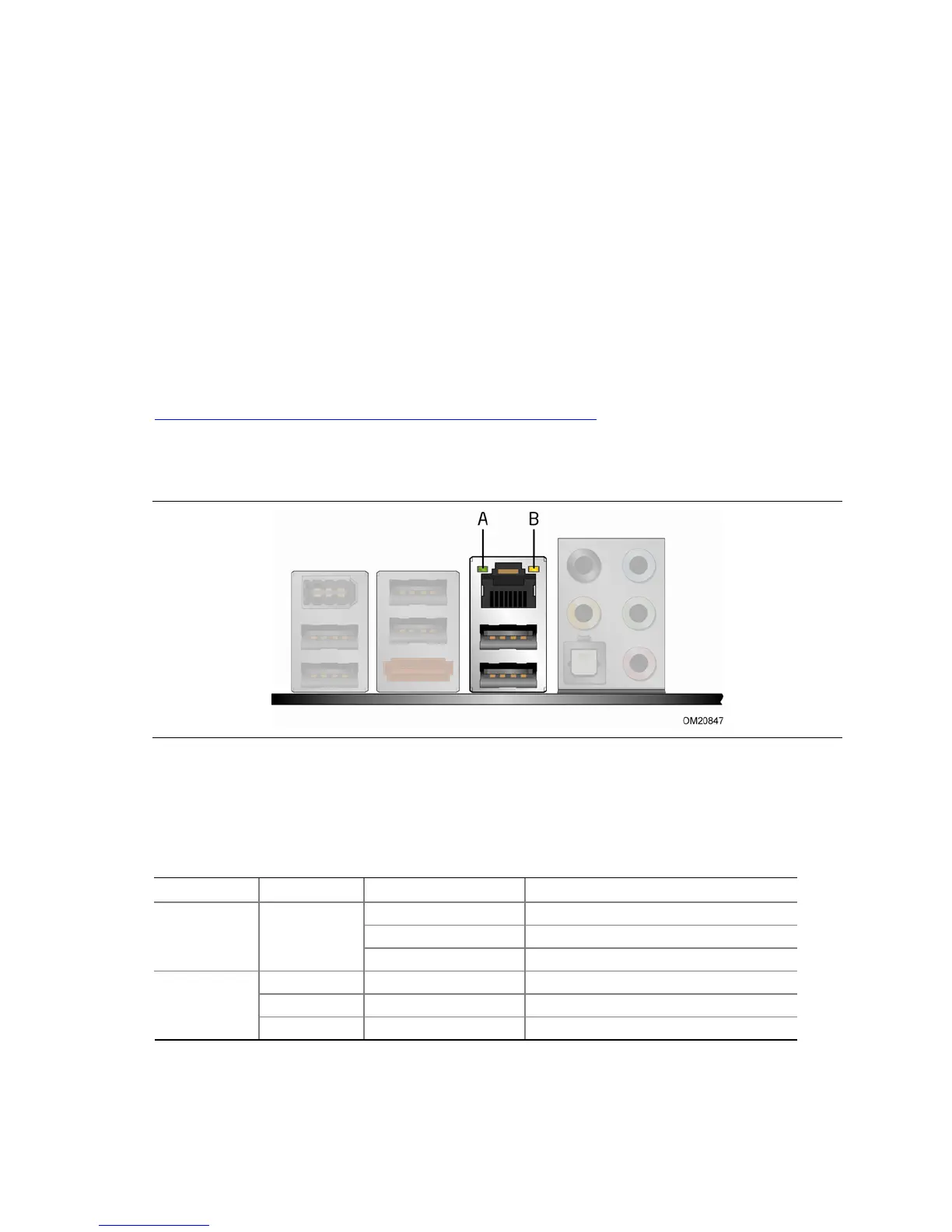

Figure 2. LAN Connector LEDs
Table 3 describes the LED states when the board is powered up and the LAN
subsystem is operating.
Table 3. LAN Connector LEDs
LED LED Color LED State Indicates
A Off LAN link is not established
Green
On LAN link is established
Blinking LAN activity is occurring
N/A Off 10 Mb/s data rate
Green On 100 Mb/s data rate
B
Yellow On 1000 Mb/s data rate
