Installing and Replacing Desktop Board Components
37
Installing DIMMs

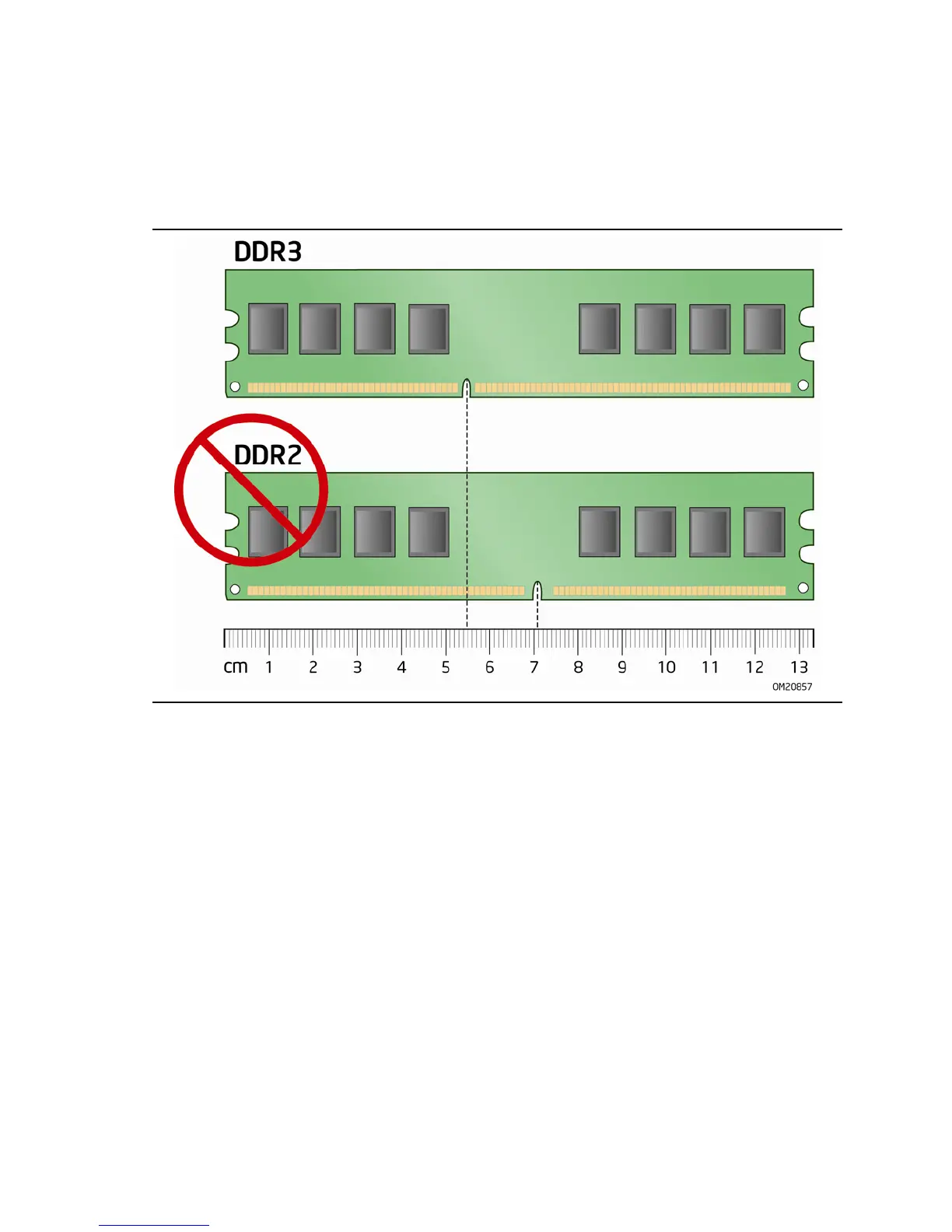

To make sure you have the correct DIMM, place it on the illustration of the DDR3
DIMM in Figure 17. All the notches should match with the DDR3 DIMM.
Figure 17. Use DDR3 DIMMs
