Intel Desktop Board DQ57TML Technical Product Specification
22
1.11.2 Audio Headers and Connectors
The board contains audio connectors and headers on both the back panel and the
component side of the board. The component-side audio headers include the
following:
• Front panel audio (a 2 x 5-pin header that provides headphone and mic in signals
for front panel audio connectors) (yellow)
• S/PDIF audio header (1 x 4-pin header) (yellow)
• Internal mono speaker header (1 x 2-pin header) (yellow)
For information about Refer to
The locations of the front panel audio header, S/PDIF header, and
internal mono speaker header
Figure 11, page 45
The signal names of the front panel audio header Table 16 and Table 18, page 48
The signal names of the S/PDIF header Table 14, page 48
The signal names of the internal mono speaker header Table 15, page 48
The back panel audio connectors Section 2.2.1, page 44
1.11.2.1 Analog Audio Connectors

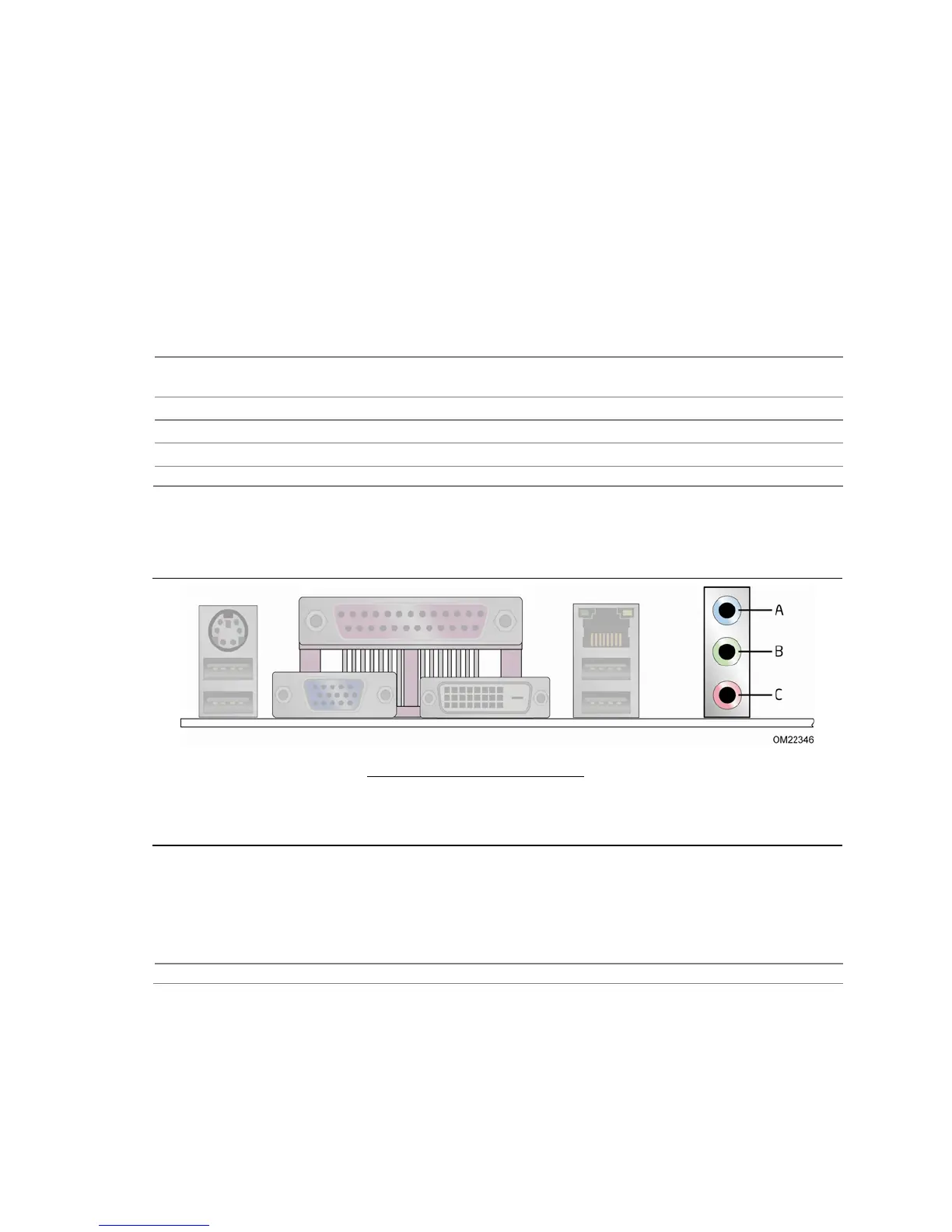

The available configurable back panel audio connectors are shown in Figure 4.
Item Description
A Audio line in
B Audio line out
C Mic in
Figure 4. Back Panel Audio Connectors
The back panel audio connectors are configurable through the audio device drivers.
For information about Refer to
The back panel audio connectors Section 2.2.1, page 44
The front panel headphone output is supported using a separate audio channel pair
allowing multi-streaming audio configurations such as stereo audio conferencing
(through a front panel headset).

Intel DQ57TM Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q57
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCI Express x1 Slots	2
PCI Slots	1
SATA Ports	6
eSATA	1
USB Ports	12
Ethernet	Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
Video Output	DVI, VGA
Audio	Realtek ALC888S
