Intel Desktop Board DQ57TML Technical Product Specification
64

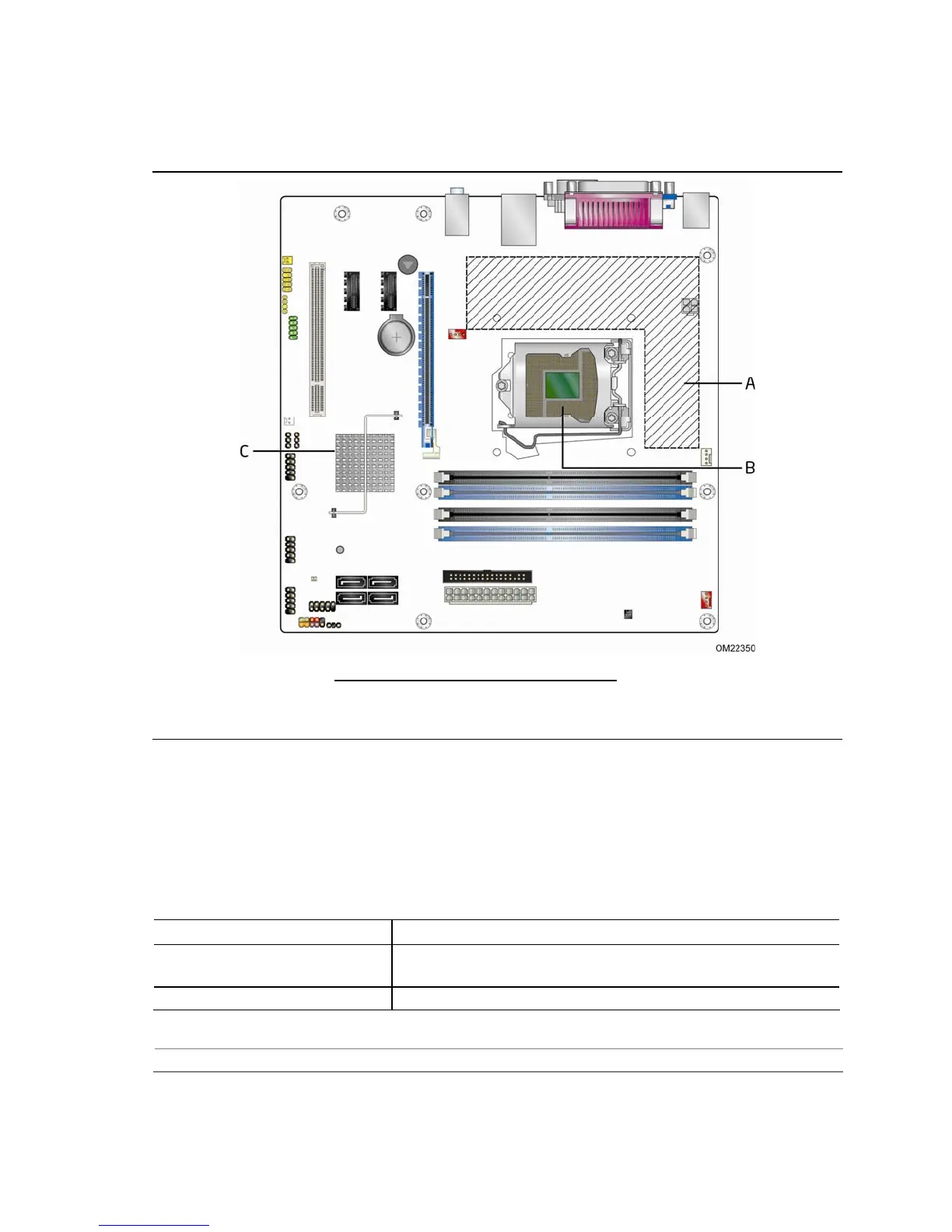

Figure 17 shows the locations of the localized high temperature zones.
Item Description
A Processor voltage regulator area
B Processor
C Intel Q57 Express Chipset
Figure 17. Localized High Temperature Zones
Table 35 provides maximum case temperatures for the components that are sensitive
to thermal changes. The operating temperature, current load, or operating frequency
could affect case temperatures. Maximum case temperatures are important when
considering proper airflow to cool the board.
Table 35. Thermal Considerations for Components
Component Maximum Case Temperature
Processor For processor case temperature, see processor datasheets and
processor specification updates
Intel Q57 Express Chipset 111
o
C (under bias)
For information about Refer to
Processor datasheets and specification updates Section 1.3, page 14

Intel DQ57TM Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q57
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCI Express x1 Slots	2
PCI Slots	1
SATA Ports	6
eSATA	1
USB Ports	12
Ethernet	Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
Video Output	DVI, VGA
Audio	Realtek ALC888S
