Intel Desktop Board DQ57TML Technical Product Specification
44
2.2.1 Back Panel Connectors
Figure 10 shows the location of the back panel connectors for the board.
Item Description
A PS/2 keyboard/mouse port
B USB ports
C VGA output
D Parallel port
E DVI-D output
F LAN
G USB ports
H Audio line in
I Mic in
J Audio line out

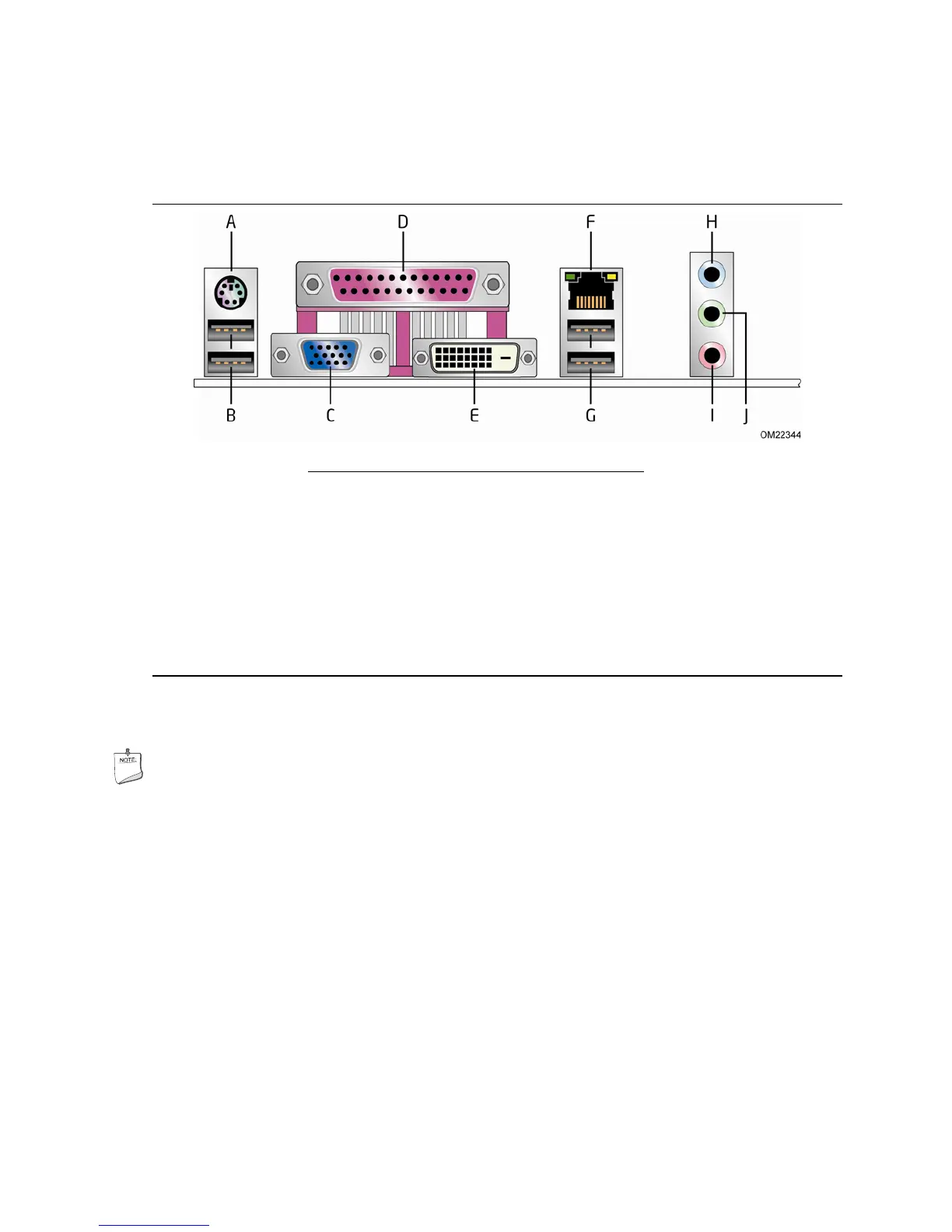

Figure 10. Back Panel Connectors
NOTE
The back panel audio line out connector is designed to power headphones or amplified
speakers only. Poor audio quality occurs if passive (non-amplified) speakers are
connected to this output.

Intel DQ57TM Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q57
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCI Express x1 Slots	2
PCI Slots	1
SATA Ports	6
eSATA	1
USB Ports	12
Ethernet	Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
Video Output	DVI, VGA
Audio	Realtek ALC888S
