Intel DQ57TM User Manual

Technical Reference
57
2.3 BIOS Configuration Jumper Block
CAUTION
Do not move the jumper with the power on. Always turn off the power and unplug the
power cord from the computer before changing a jumper setting. Otherwise, the
board could be damaged.
Figure 14 shows the location of the jumper block. The 3-pin jumper block determines
the BIOS Setup program’s mode. Table 31 describes the jumper settings for the three
modes: normal, configure, and recovery.

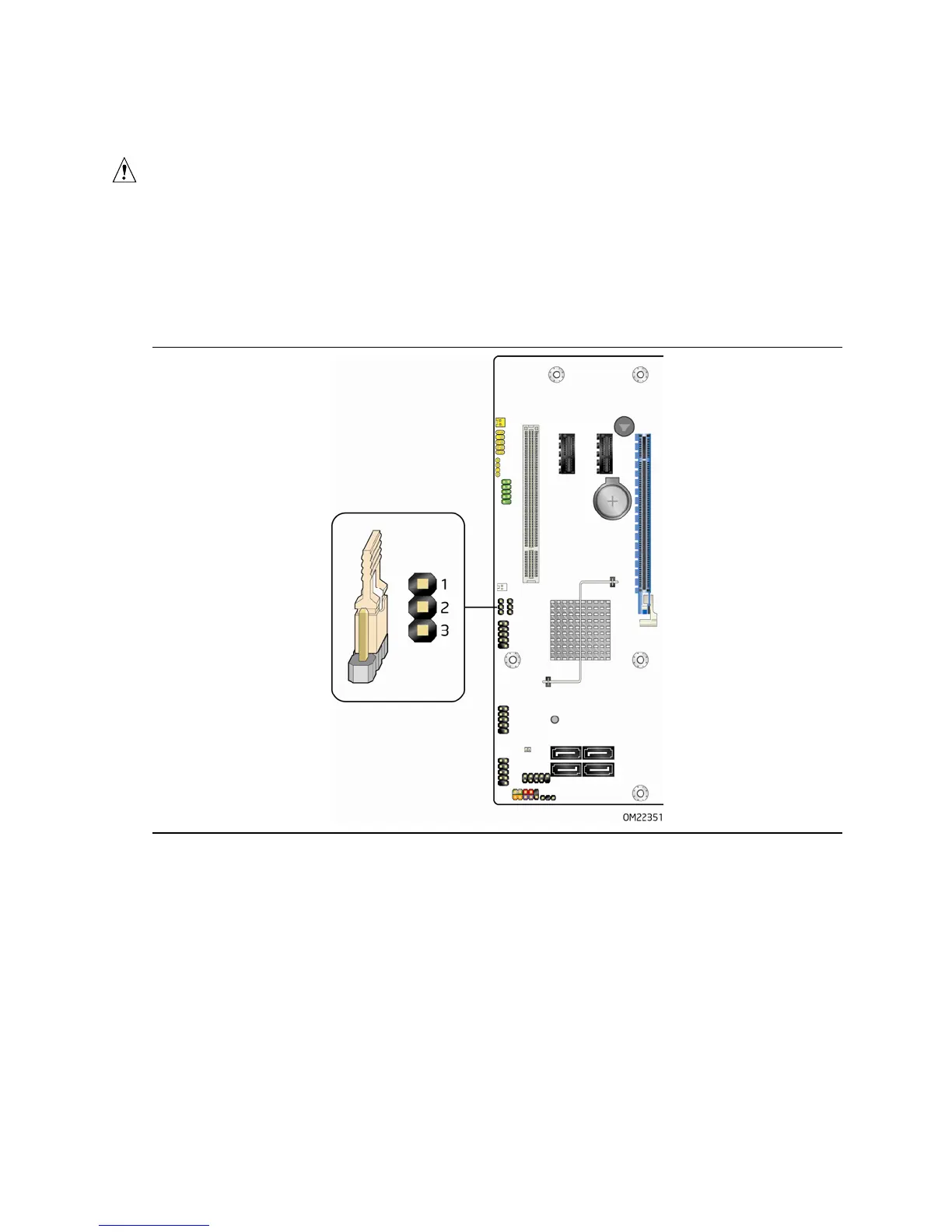

Figure 14. Location of the Jumper Block

Intel DQ57TM Specifications

General

Form Factor	Micro ATX
Chipset	Intel Q57
Socket	LGA 1156
Memory Type	DDR3
Memory Slots	4
Maximum Memory	16 GB
PCI Express x16 Slots	1
PCI Express x1 Slots	2
PCI Slots	1
SATA Ports	6
eSATA	1
USB Ports	12
Ethernet	Gigabit Ethernet
RAID Support	RAID 0, 1, 5, 10
Video Output	DVI, VGA
Audio	Realtek ALC888S
