Intel DQ965GF - Desktop Board Motherboard

Intel Desktop Board DQ965GF Product Guide
32

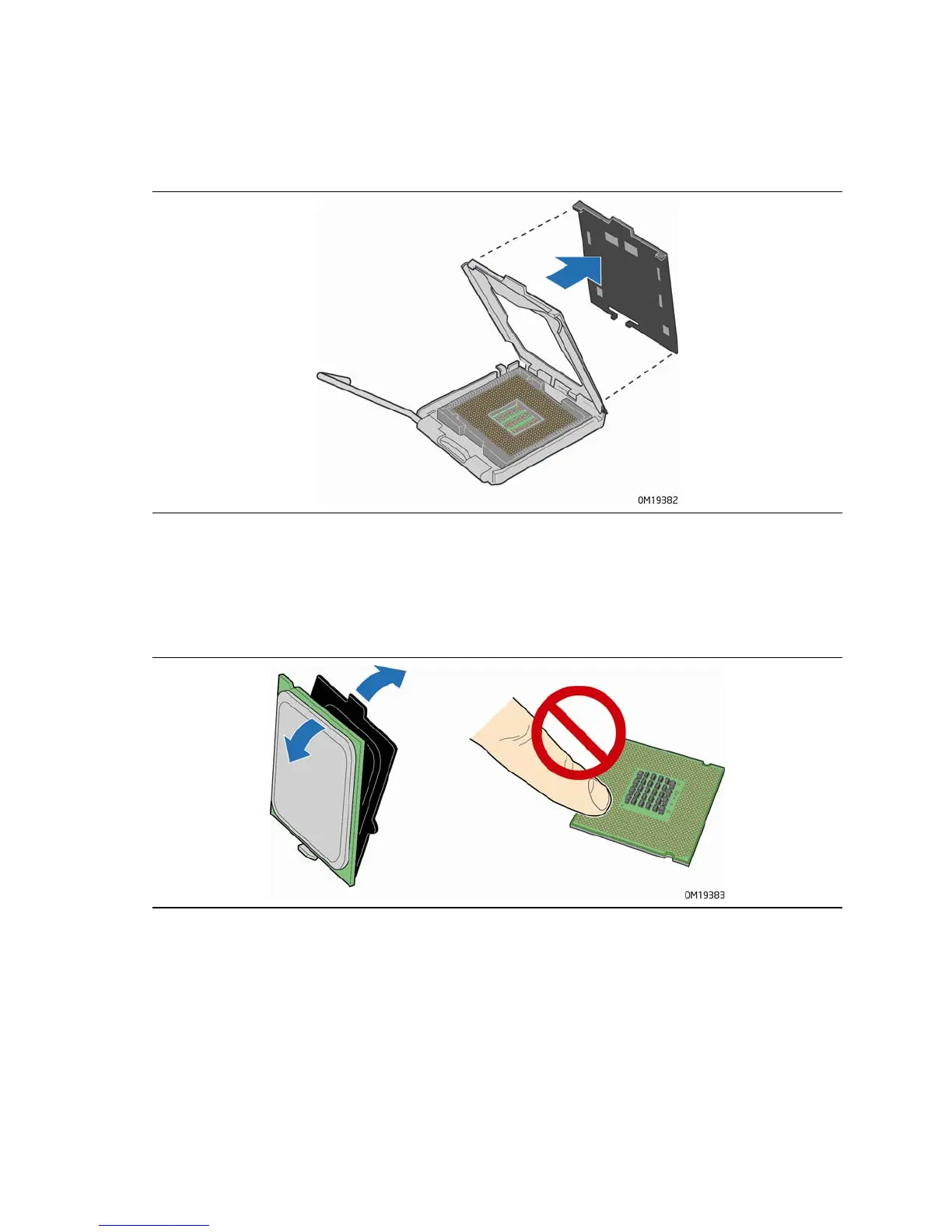

4. Remove the plastic protective socket cover from the load plate (see Figure 8). Do
not discard the protective socket cover. Always replace the socket cover if the
processor is removed from the socket.
Figure 8. Remove the Protective Socket Cover
5. Remove the processor from the protective processor cover. Hold the processor
only at the edges, being careful not to touch the bottom of the processor (see
Figure 9). Do not discard the protective processor cover. Always replace the
processor cover if the processor is removed from the socket.
Figure 9. Remove the Processor from the Protective Processor Cover
