Intel Desktop Board DQ965GF Product Guide
54
Back Panel Connectors
NOTE
The line out connector, located on the back panel, is designed to power either
headphones or amplified speakers only. Poor audio quality may occur if passive (non-
amplified) speakers are connected to this output.

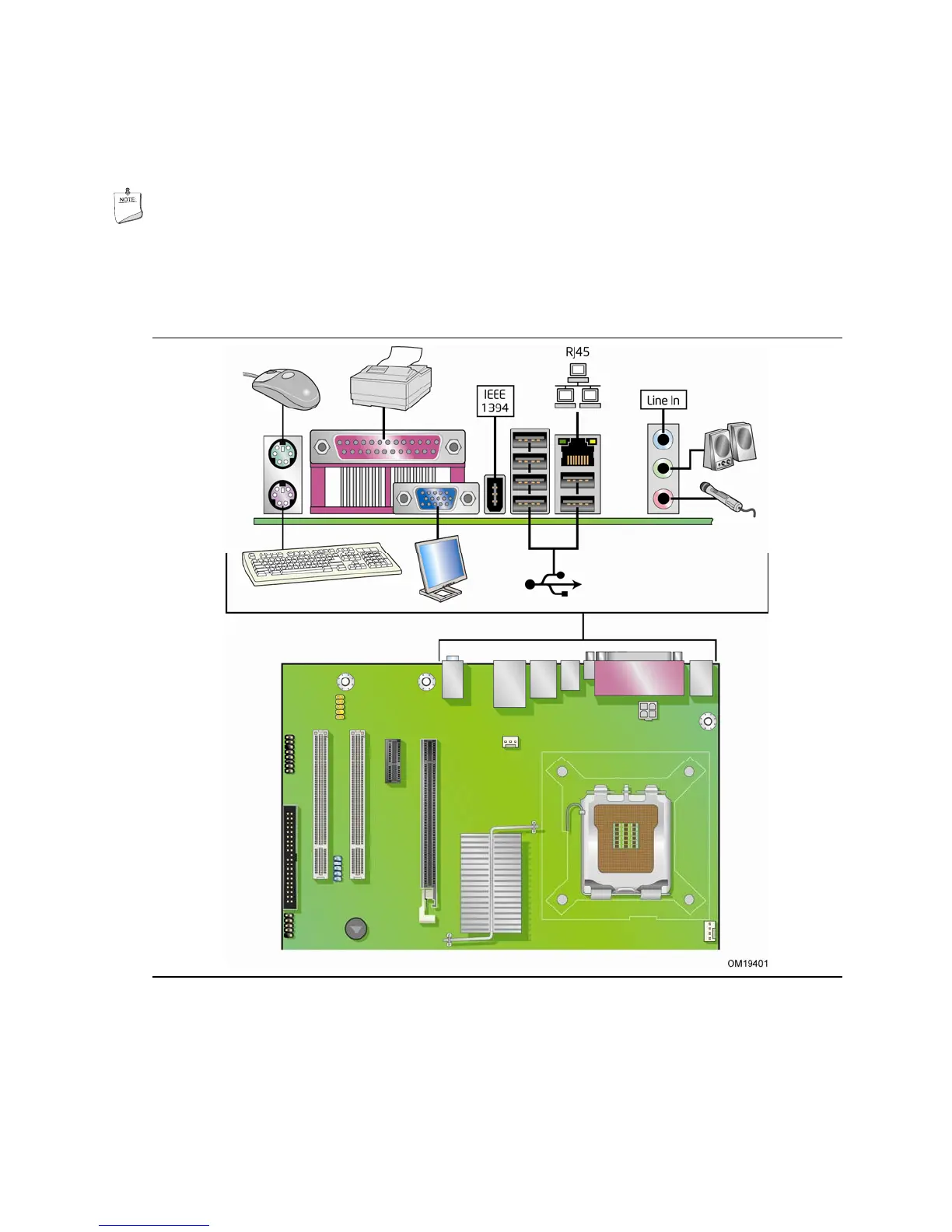

Figure 28 shows the back panel connectors.
Figure 28. Back Panel Connectors
