Installing and Replacing Desktop Board Components
37
Three DIMMs
Install a matched pair of DIMMs equal in speed and size in DIMM 0 (blue) and DIMM 1
(black) of channel A. Install a DIMM equal in speed and total size of the DIMMs
installed in channel A in either DIMM 0 or DIMM 1 of channel B (see
Figure 15).

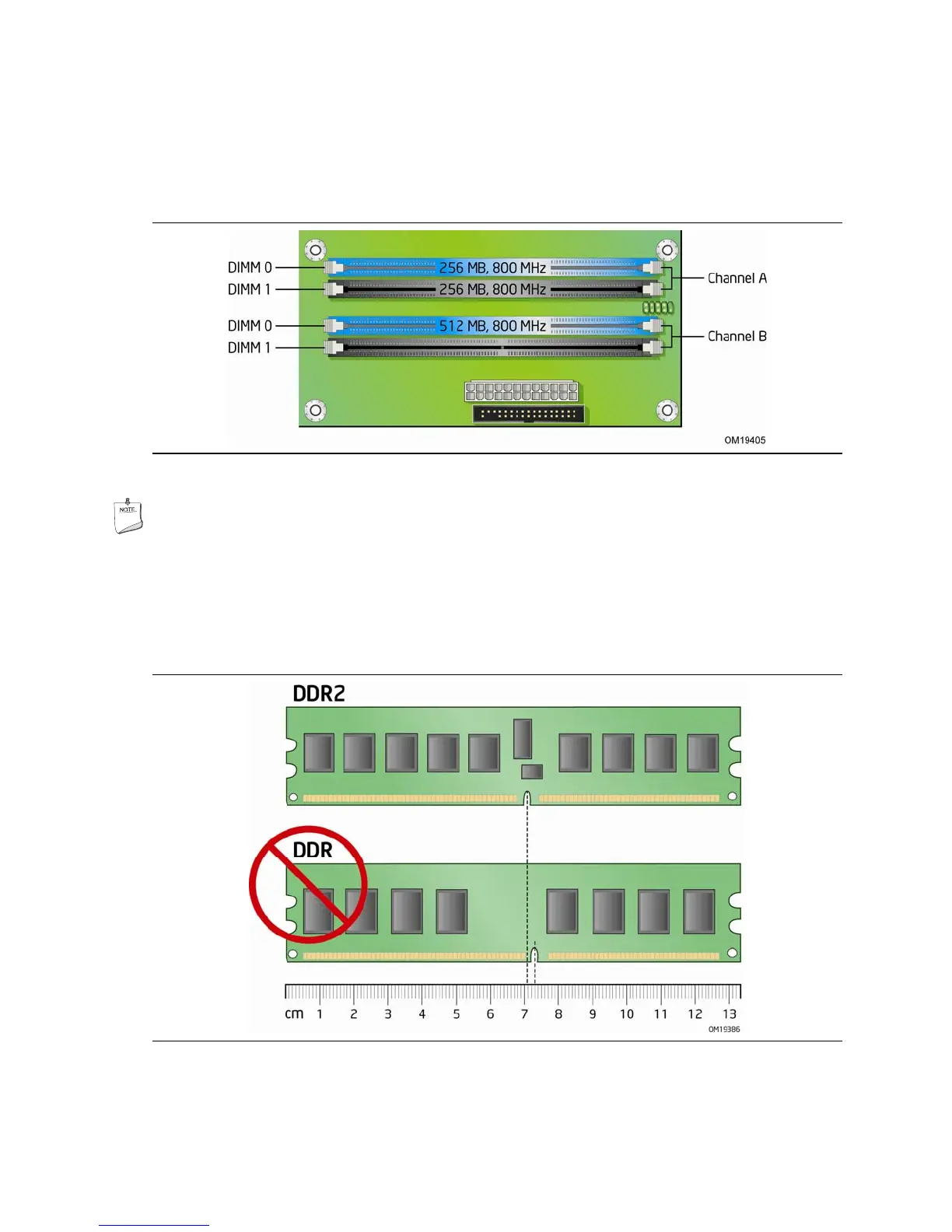

Figure 15. Dual Channel Memory Configuration Example 3
NOTE
All other memory configurations will result in single channel memory operation.
Installing DIMMs
To make sure you have the correct DIMM, place it on the illustration of the DDR2
DIMM in
Figure 16. All the notches should match with the DDR2 DIMM.
Figure 16. Use DDR2 DIMMs
