Intel Desktop Board DQ965GF Product Guide
44
Connecting to Internal Headers
Before connecting cables to the internal headers, observe the precautions in "Before
You Begin" on page
27. Figure 22 shows the location of the internal headers.
Item Description
A HD Audio Link
B IEEE 1394a
C Front panel audio
D Serial port
E Alternate front panel power LED
F Front panel
G USB 2.0

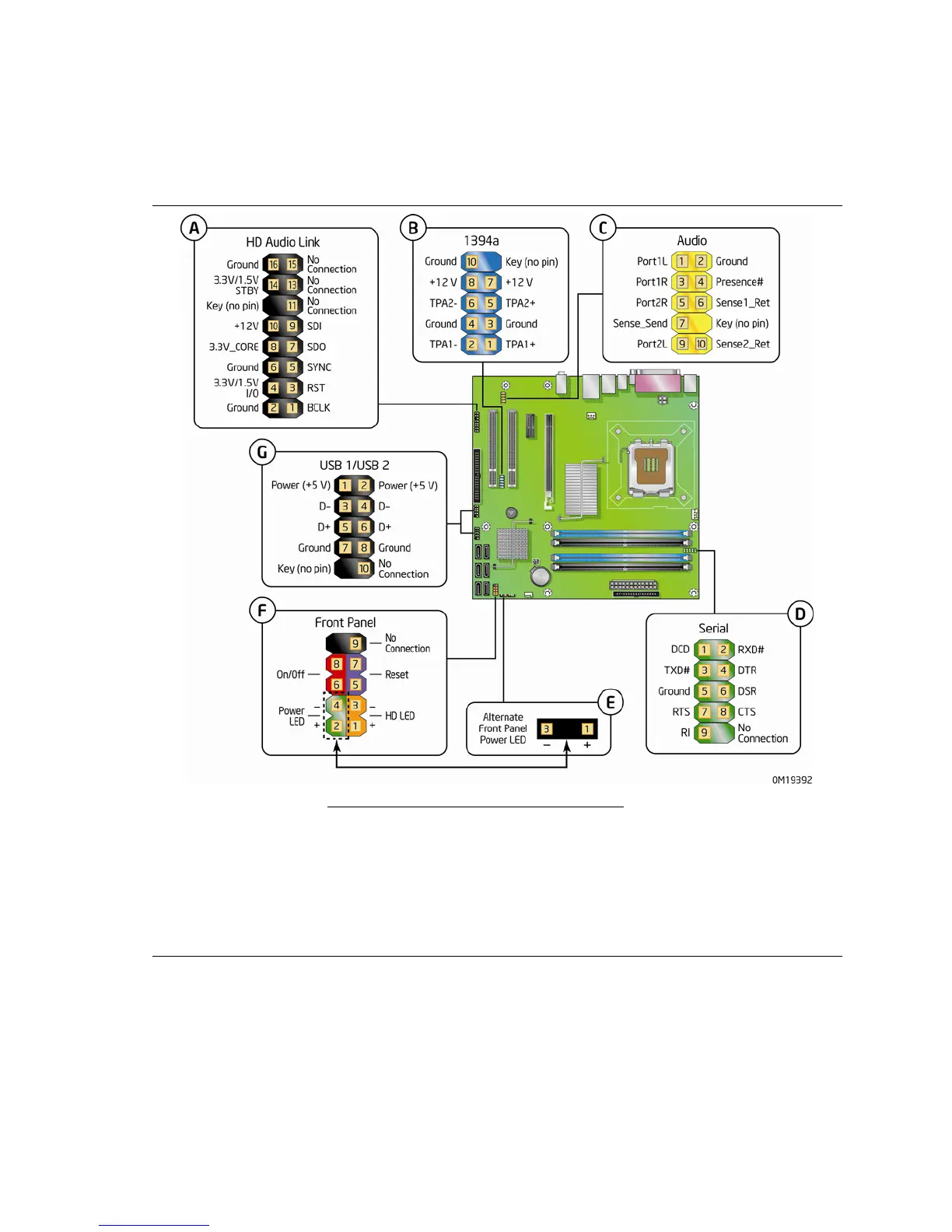

Figure 22. Internal Headers
