Two or Four DIMMs
Install a matched pair of DIMMs equal in speed and size (see Figure 13) in DIMM 0
(blue) of both channels A and B.

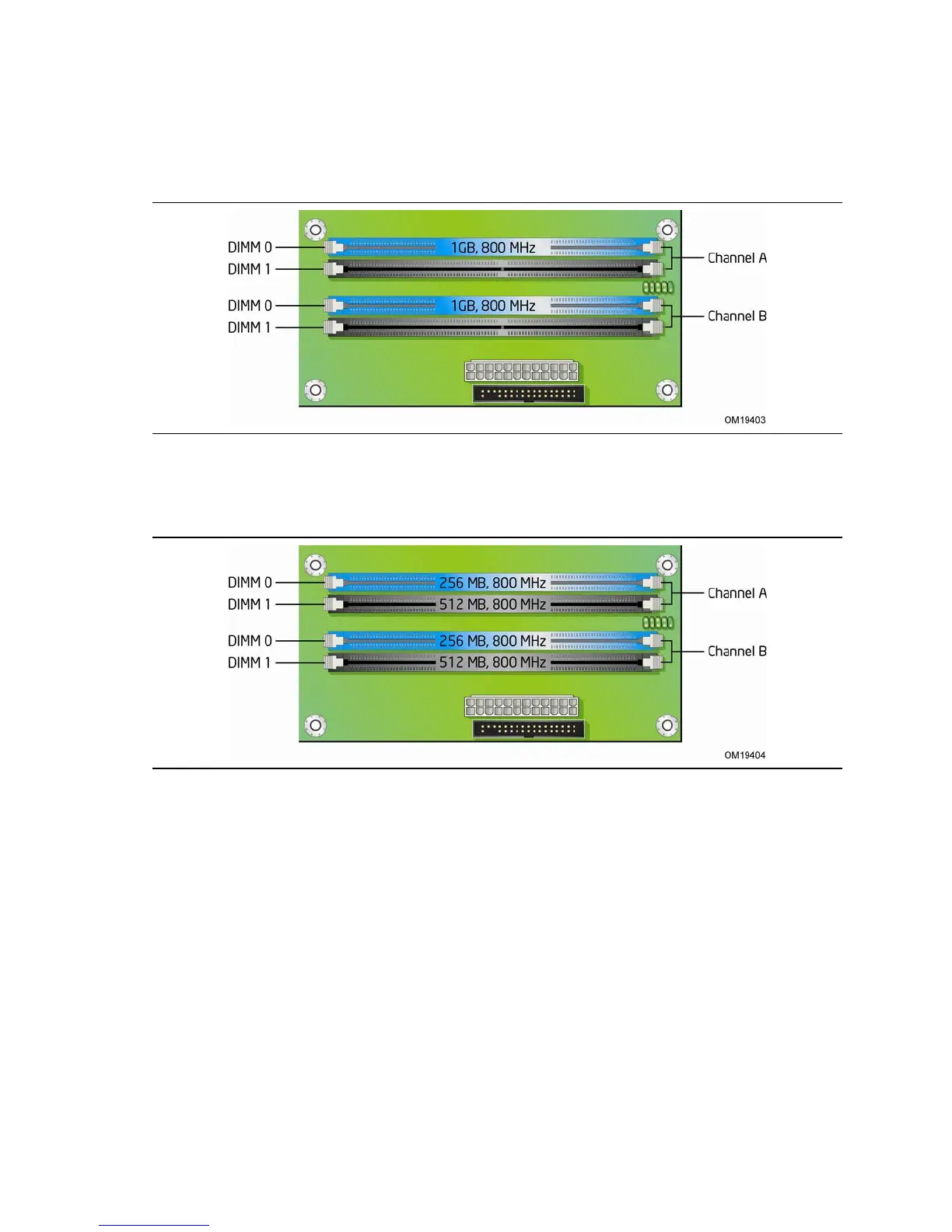

Figure 13. Dual Channel Memory Configuration Example 1
If additional memory is to be used, install another matched pair of DIMMs in DIMM 1
(black) in both channels A and B (see
Figure 14).
Figure 14. Dual Channel Memory Configuration Example 2
