Installing and Replacing Desktop Board Components
49
Connecting Chassis Fan and Power Cables
Connecting Chassis Fan Cables
Connect the chassis fan cables to the two chassis fan headers on the desktop board.
Figure 24 shows the location of the chassis fan headers.

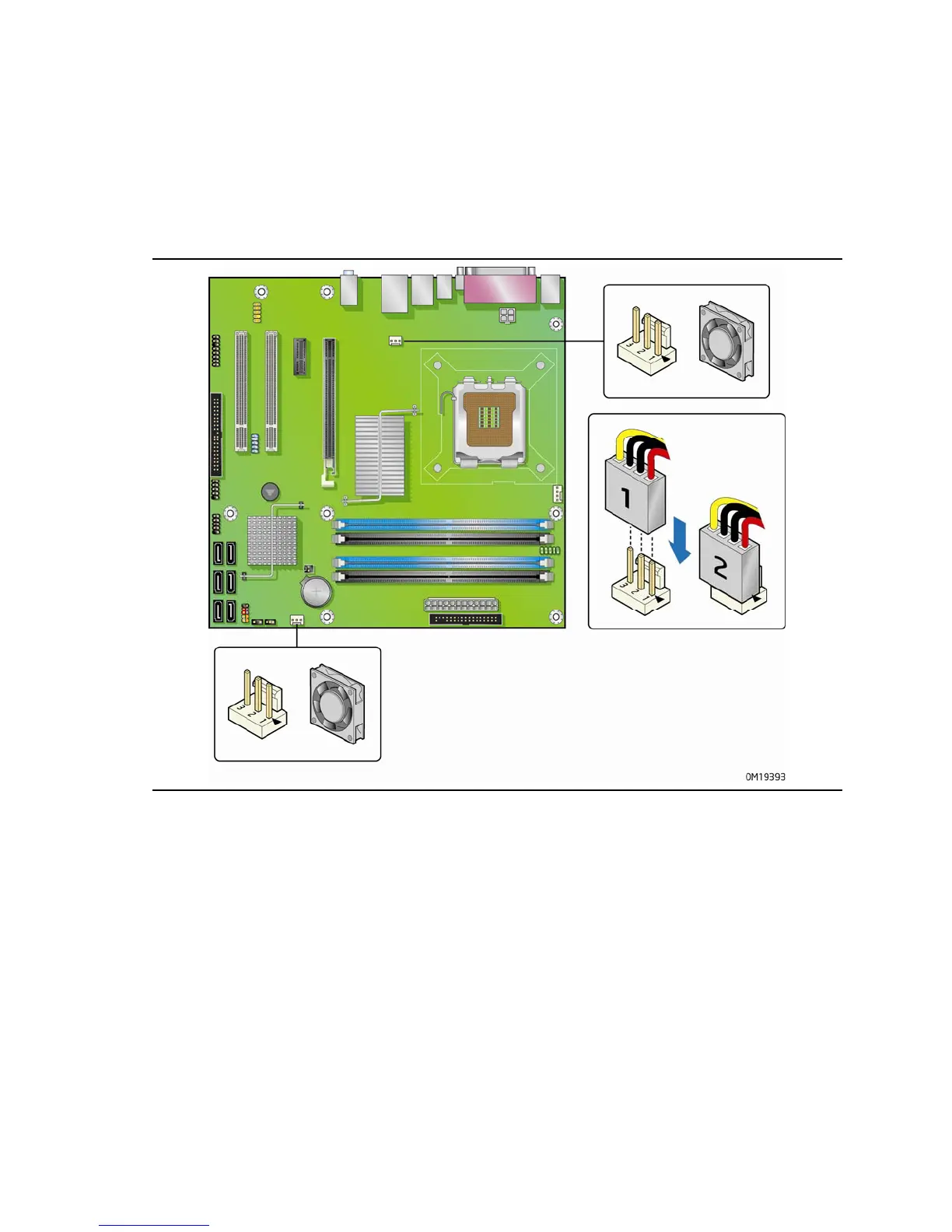

Figure 24. Location of Chassis Fan Headers
