Intel DX79TO User Manual

Product Description
13
1.1.2 Board Layout

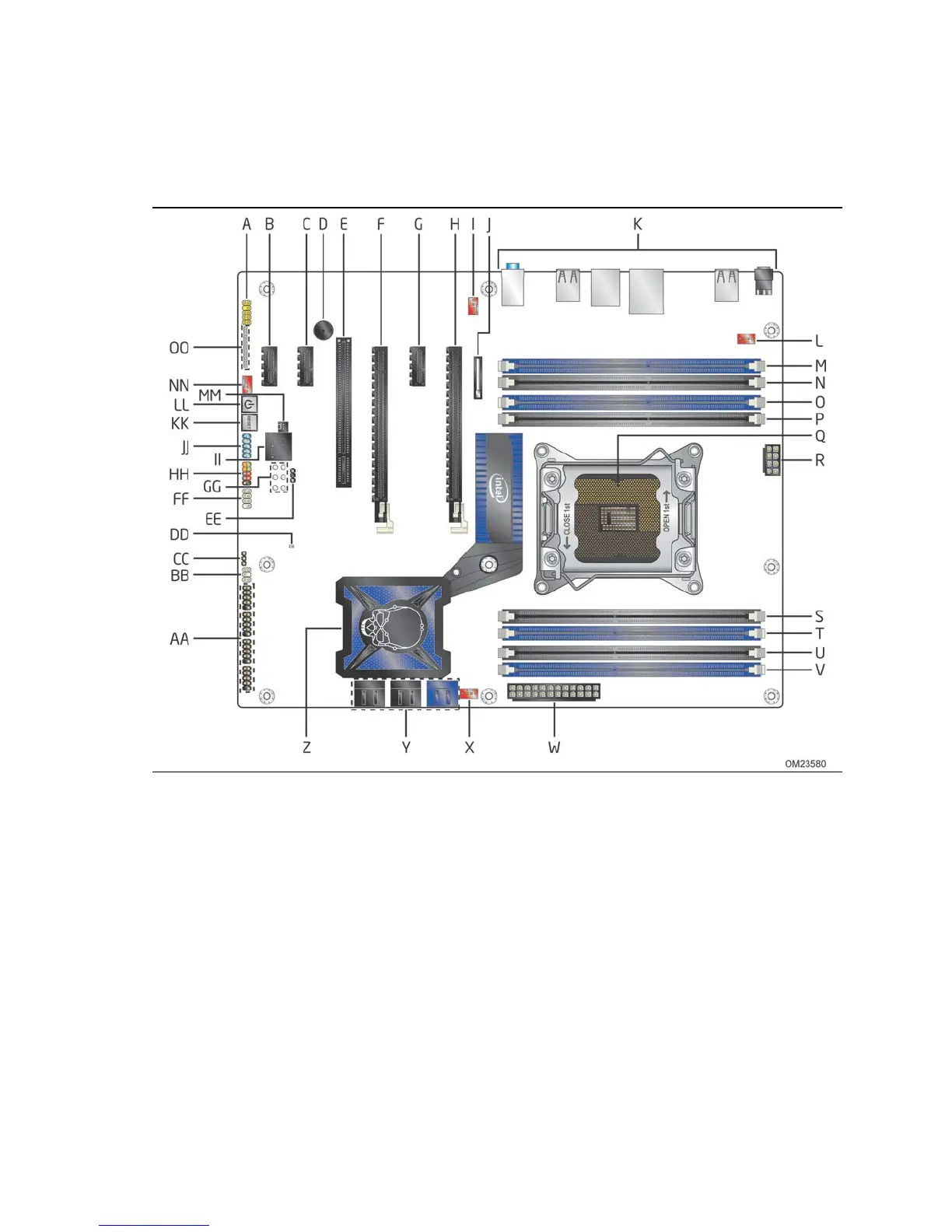

Figure 1 shows the location of the major components on Intel Desktop Board DX79TO.
Figure 1. Major Board Components
Table 3 lists the components identified in Figure 1.

Intel DX79TO Specifications

General

Form Factor	ATX
Chipset	Intel X79
Socket	LGA 2011
Memory Type	DDR3
Max Memory	64GB
PCIe 2.0 x1 Slots	2
PCI Slots	1
SATA 6Gb/s	2
SATA 3Gb/s	4
USB 3.0 Ports	2
LAN	Intel 82579V
Memory Slots	8
