Intel DX79TO - Memory Channel and DIMM Configuration

Intel Desktop Board DX79TO Technical Product Specification
20

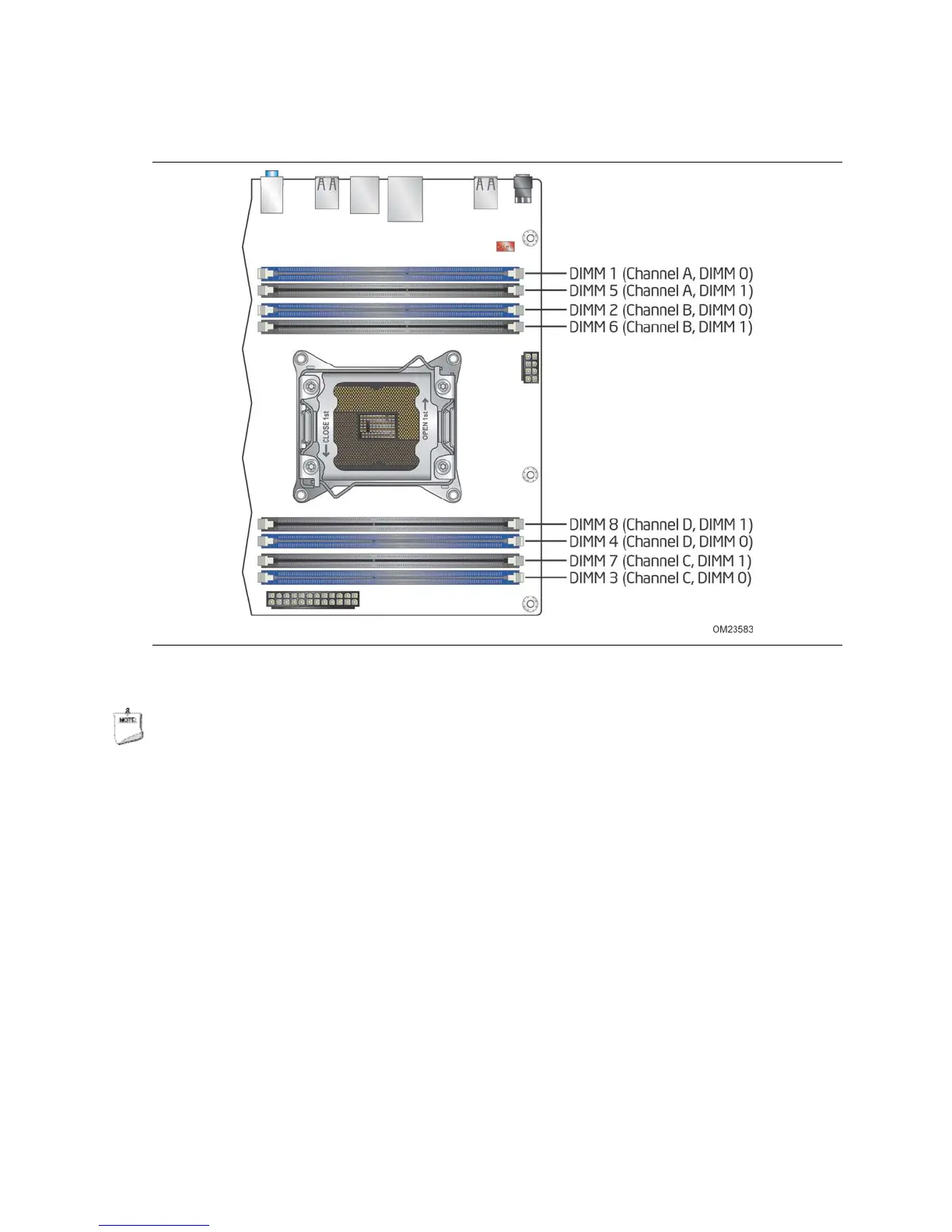

Figure 3 illustrates the memory channel and DIMM configuration.
Figure 3. Memory Channel and DIMM Configuration
NOTE
For best memory performance always install memory into the blue DIMM memory
sockets if installing four DIMMs or less in your configuration.
