Intel Desktop Board DX79TO Technical Product Specification
46
2.2.2 Component-side Connectors and Headers

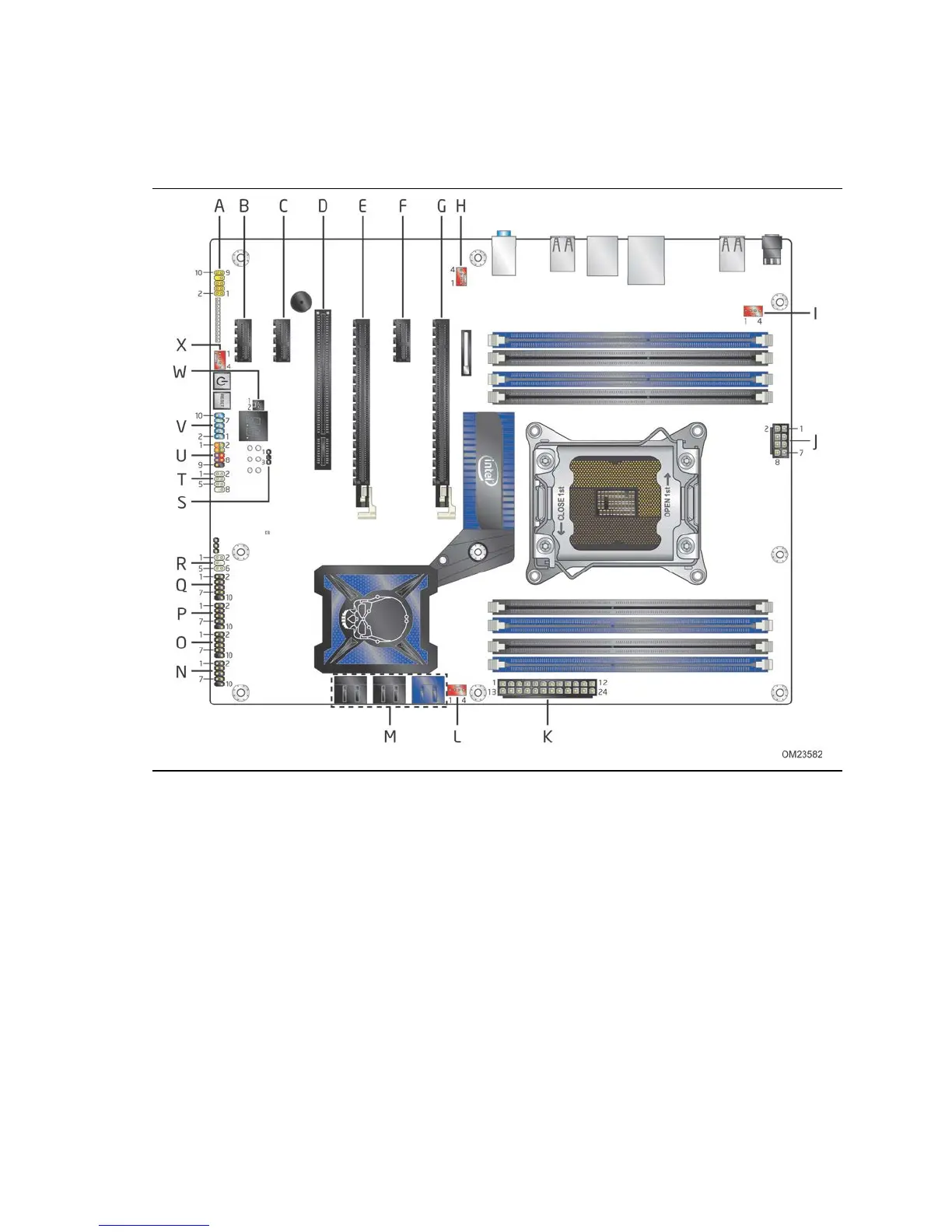

Figure 12 shows the locations of the component-side connectors and headers.
Figure 12. Component-side Connectors and Headers
Table 12 lists the component-side connectors and headers identified in Figure 12.
