Technical Reference
45
2.2.1.1 I/O Shield
The I/O shield provided with the board allows access to all back panel connectors and
is compatible with standard mini-ITX and ATX chassis. Figure 11 shows an I/O shield
reference diagram.

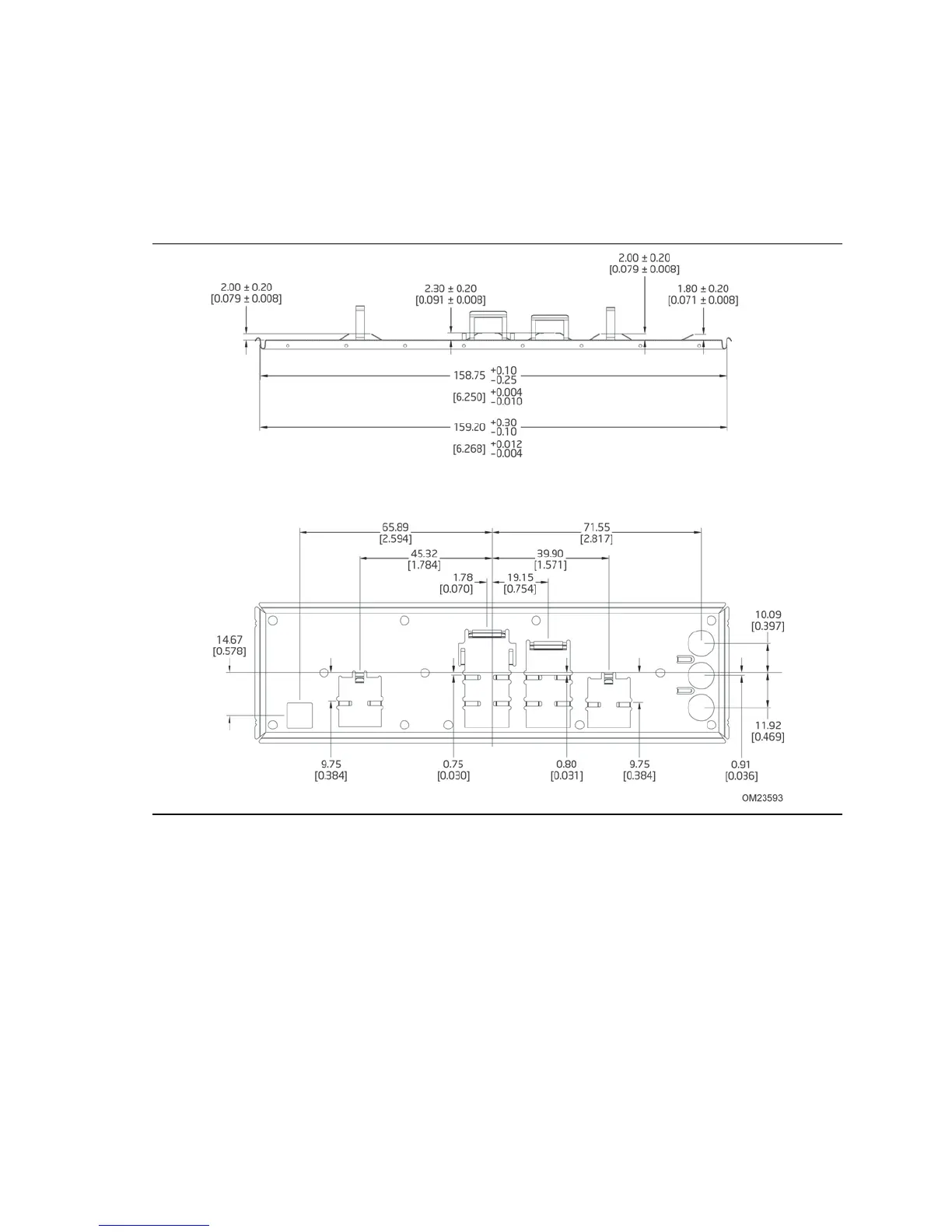

Figure 11. I/O Shield Reference Diagram
