GD82559ER — Networking Silicon
82
Datasheet

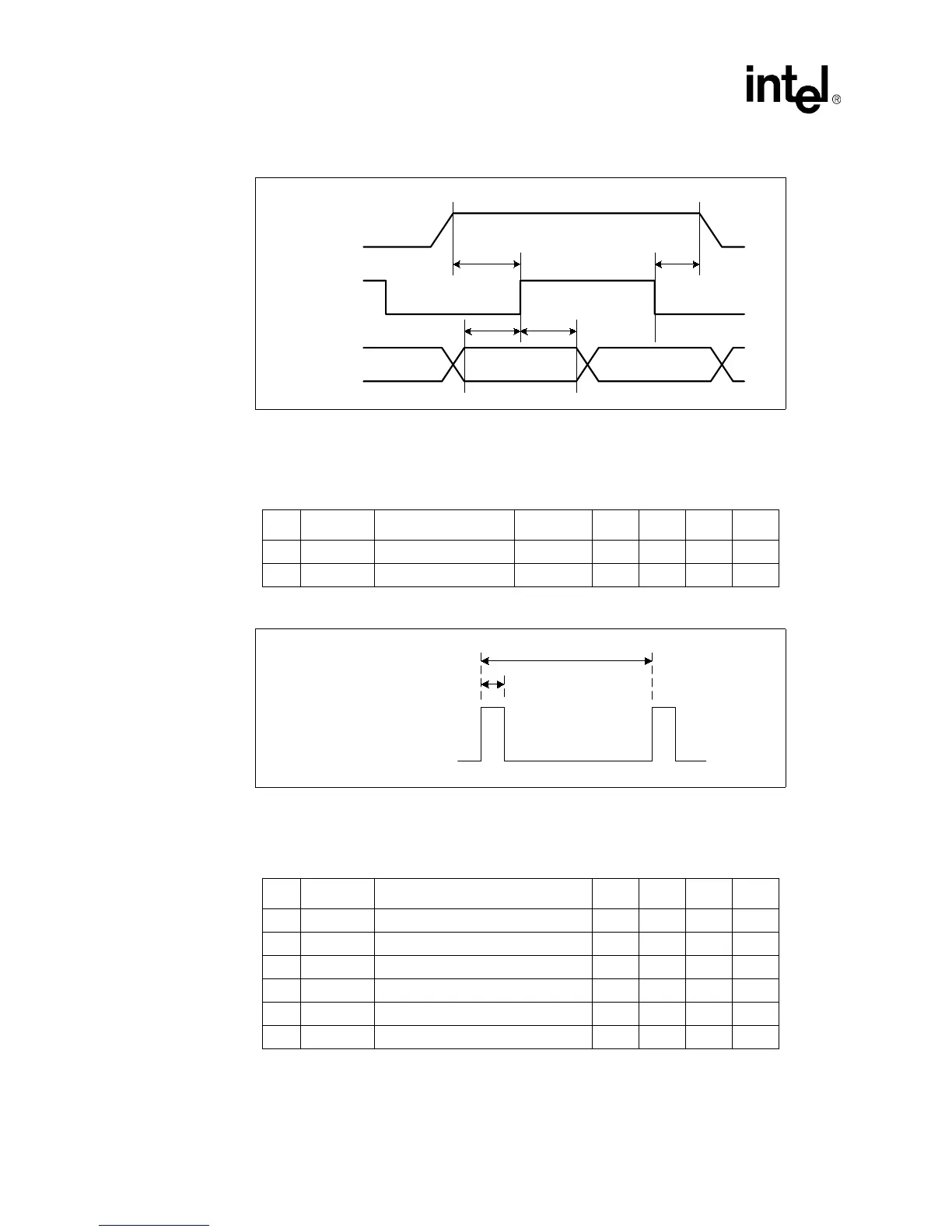

10.4.2.5 PHY Timings
Figure 30. EEPROM Timings
EECS
FLA15EESK
FLA13EEDI
T51 T52
T54T53
Table 28. 10BASE-T NLP Timing Parameters
Symbol Parameter Condition Min Typ Max Units
T56 T
nlp_wid
NLP Width 10 Mbps 100 ns
T57 T
nlp_per
NLP Period 10 Mbps 8 24 ms
Figure 31. 10BASE-T NLP Timings
Normal Link Pulse
T57
T56
Table 29. Auto-Negotiation FLP Timing Parameters
Symbol Parameter Min Typ Max Units
T58 T
flp_wid
FLP Width (clock/data) 100 ns
T59 T
flp_clk_clk
Clock Pulse to Clock Pulse Period 111 125 139 µs
T60 T
flp_clk_dat
Clock Pulse to Data Pulse Period 55.5 62.5 69.5 µs
T61 T
flp_bur_num
Number of Pulses in one burst 17 33
T62 T
flp_bur_wid
FLP Burst Width 2 ms
T63 T
flp_bur_per
FLP Burst Period 8 24 ms
