Intel H110 User Manual

9

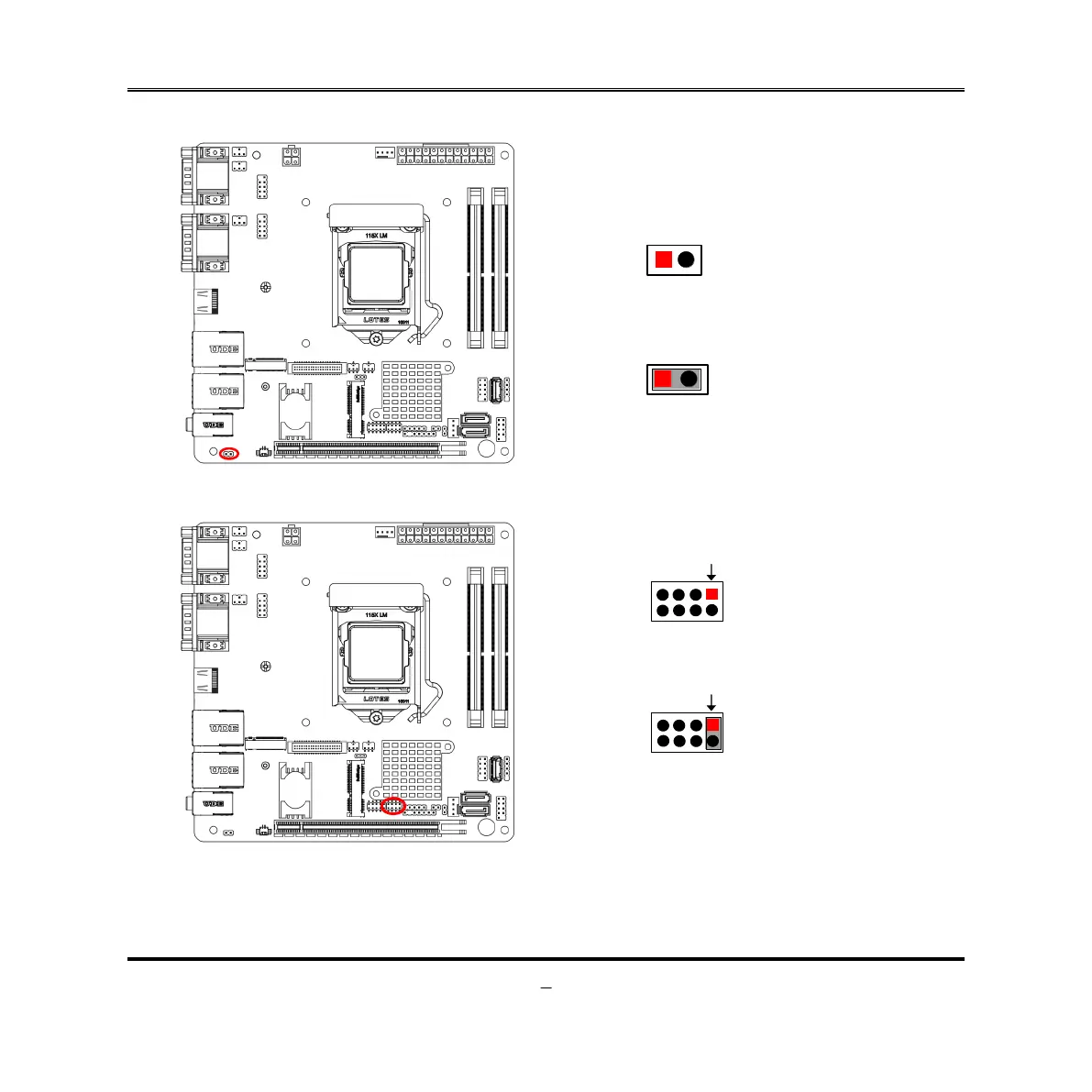

JBAT (2-pin): Clear CMOS RAM Settings
(2.54 pitch)
JBAT → Clear CMOS
1
2
1
2
1-2 Open: Normal (Default);
1-2 Closed:Clear CMOS Settings.
Pin (1-2) of JP1 (8-pin):Case Open Message Display Function Select
(2.0 pitch)
7
Pin1
7
5
6
6
5
4
3
3
4
Pin(1-2) of JP1 → Case Open Detect
1-2 Open: Normal (Default);
1-2 Close: Case Open Detect
Function Selected.
(One Touch).
2
2
8
Pin1
8
Pin (1-2) Close: When Case open function pin short to GND, the Case open
function was detected. When Used, needs to enter BIOS and enable
‘
Case Open
Detect
’
function. In this case if your case is removed, next time when you restart
your computer, a message will be displayed on screen to inform you of this.
