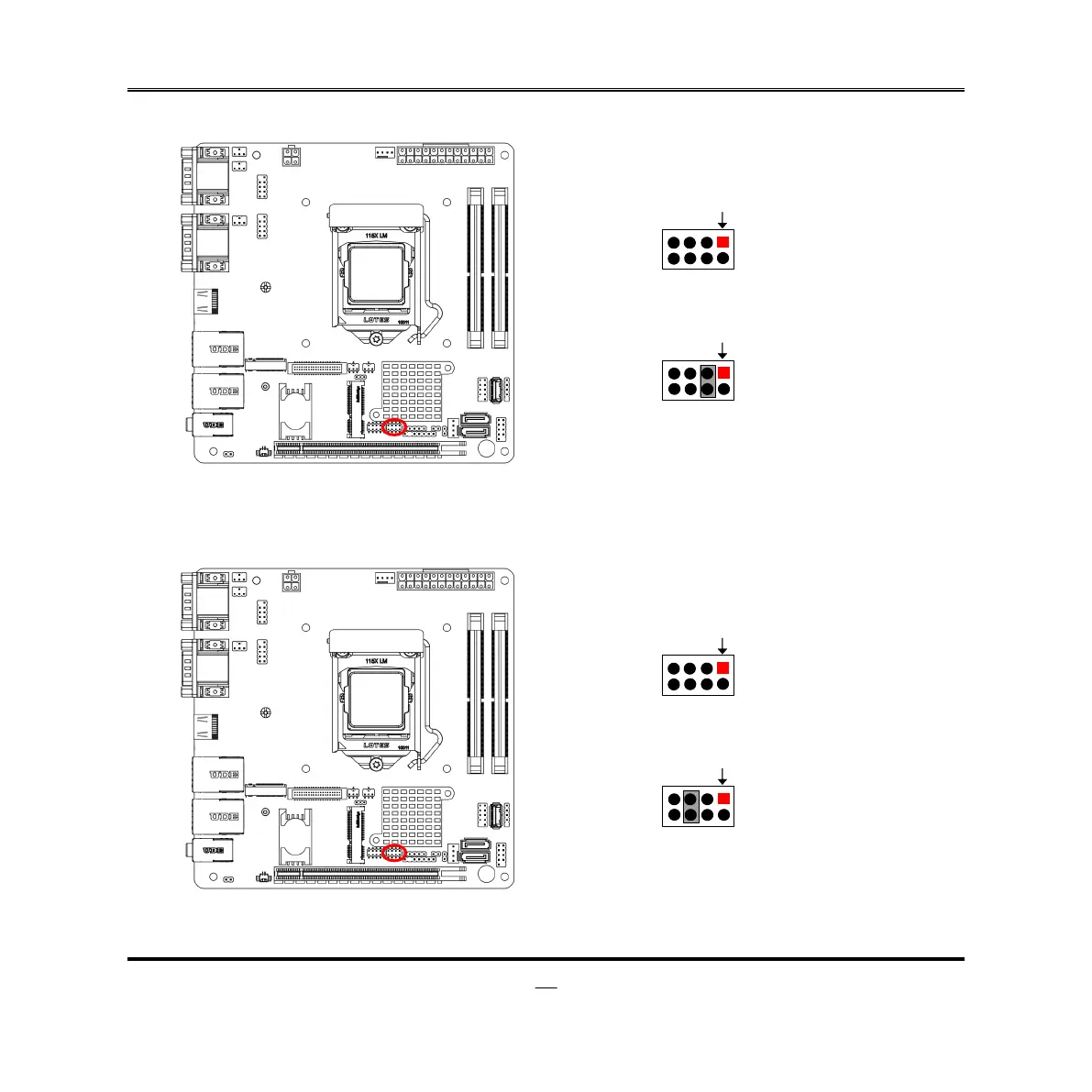

Pin (3-4) of JP1 (8-pin): ATX Mode/ AT Mode Select
(2.0 pitch)
7
Pin1
7
5
6
6
5
4
3
3
4
2
2
8
Pin1
8
Pin(3-4) of JP1 → ATX/AT Mode Select
3-4 Open: ATX Mode Selected (Default);
3-4 Close : AT Mode Selected.
*ATX Mode Selected: Press power button to power on after power input ready;
AT Mode Selected: Directly power on as power input ready.
Pin (5-6) of JP1 (8-pin): LAN1 Active LED Header
(2.0 pitch)
7
Pin1
7
5
6
6
5
4
3
3
4
2
2
8
Pin1
8
Pin(5-6) of JP1 → LAN1 Activity LED
5-6 Open: Normal (Default);
5-6 Close : LAN1 active LED selected.
