Intel H110 User Manual

11

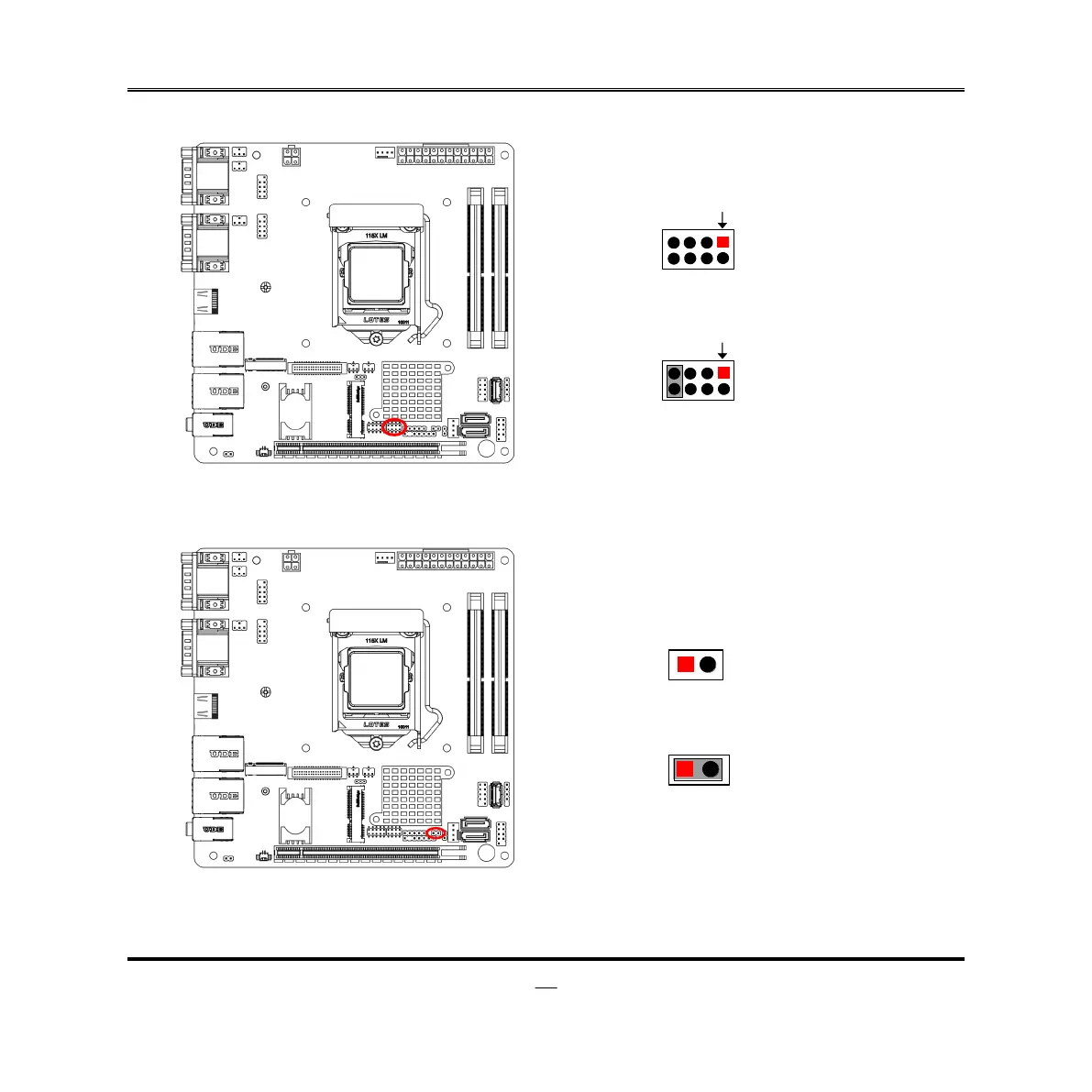

Pin (7-8) of JP1 (8-pin): LAN2 Active LED Header
(2.0 pitch)
7
Pin1
7
5
6
6
5
4
3
3
4
2
2
8
Pin1
8
Pin(7-8) of JP1 → LAN2 Activity LED
7-8 Open: Normal (Default);
7-8 Close : LAN2 Active LED selected.
JP2 (2-pin): ME Features Select
(2.54 pitch)
1
2
1
2
JP2 → ME Features Select
1-2 Open: Enable ME Features；
1-2 Closed: Disable ME Features.

Intel H110 Specifications

General

Socket	LGA 1151
Memory Type	DDR4
Max Memory	32 GB
Memory Slots	2
PCIe 3.0 x16 Slots	1
PCI Express Lanes	6
RAID Support	No
Chipset	Intel H110
SATA Ports	4
Form Factor	ATX, Micro-ATX, Mini-ITX
Memory Speed	2133 MHz
USB 3.0 Ports	4
USB 2.0 Ports	6
Memory Channels	2
