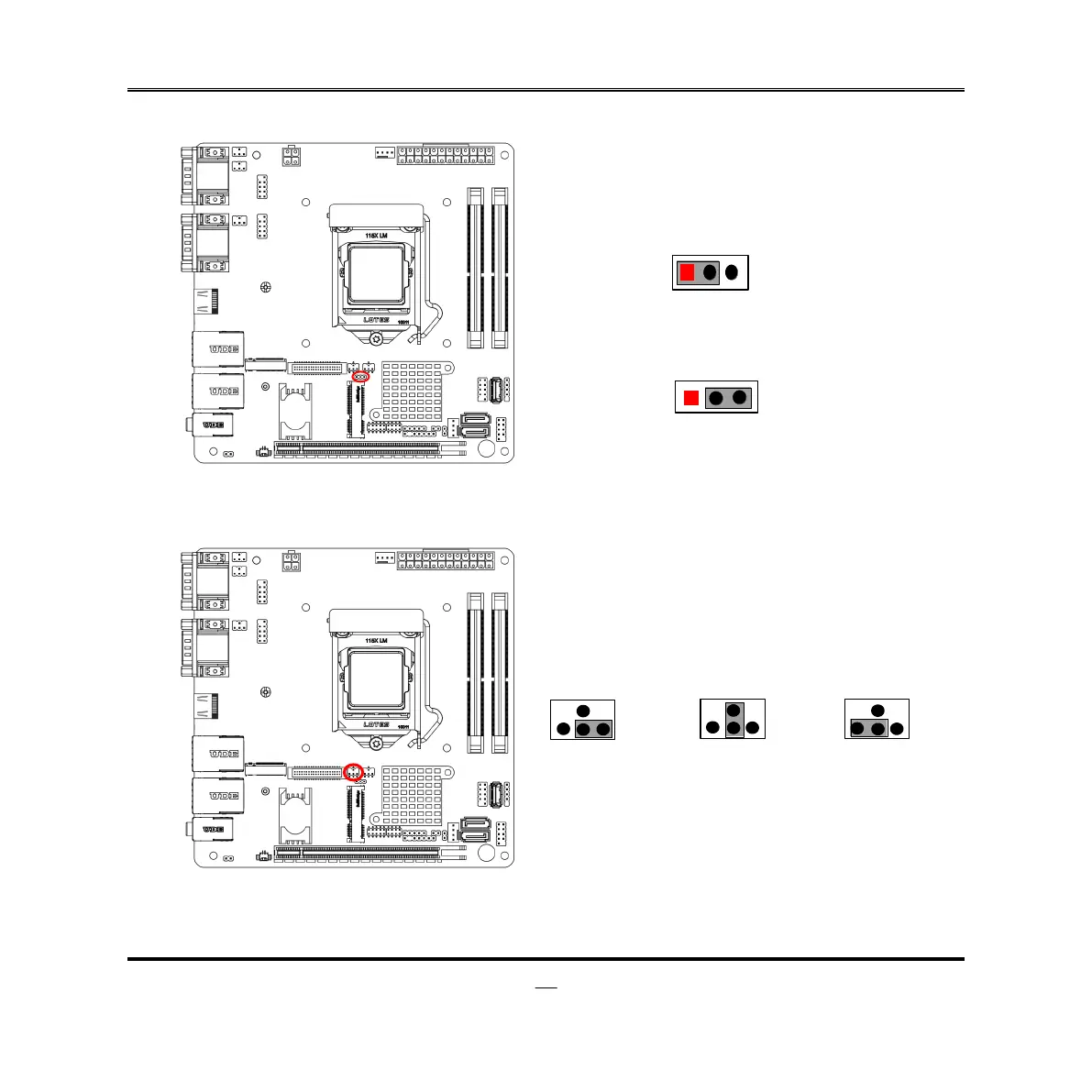

MPE_PWR (3-pin): MPE1 Slot VCC 3.3V/3.3 VSB Select
(2.0 pitch)
2-3 Closed: MPE1 Slot VCC= 3.3VSB.
MPE_PWR → MPE1 Slot VCC
1-2 Closed: MPE1 Slot VCC= 3.3V;
1
3
1
3
EDP_BKPWR (4-pin): EDP Backlight VCC 3.3V/5V/12V
(2.0 pitch)
1
3
5
4
6
2
6
4
2
5
3
1
6
4
2
5
3
1
EDP_BKPWR → EDP Backlight VCC
2-4 Closed:
EDP Backlight
VCC =3V;
3-4 Closed:
EDP Backlight
VCC =5V;
4-6 Closed:
EDP Backlight
VCC =12V;

Intel H110 Specifications

General

Socket	LGA 1151
Memory Type	DDR4
Max Memory	32 GB
Memory Slots	2
PCIe 3.0 x16 Slots	1
PCI Express Lanes	6
RAID Support	No
Chipset	Intel H110
SATA Ports	4
Form Factor	ATX, Micro-ATX, Mini-ITX
Memory Speed	2133 MHz
USB 3.0 Ports	4
USB 2.0 Ports	6
Memory Channels	2
