24
(3) PS/2 Mouse & PS/2 Keyboard Connector: PS2KBMS
The connectors are for PS/2 keyboard and PS/2 Mouse input devices.
(4) USB Port connector: UL2
The connectors are 4-pin connectors that connect USB devices with the 400Mbit / sec
data transfer rate to the system board.
(5) LAN Port connector: UL2
This connector is standard RJ45 over USB connectors for Network and USB devices
connection. The UL2 support r 10M/100Mb/1G b/s data transfer rate

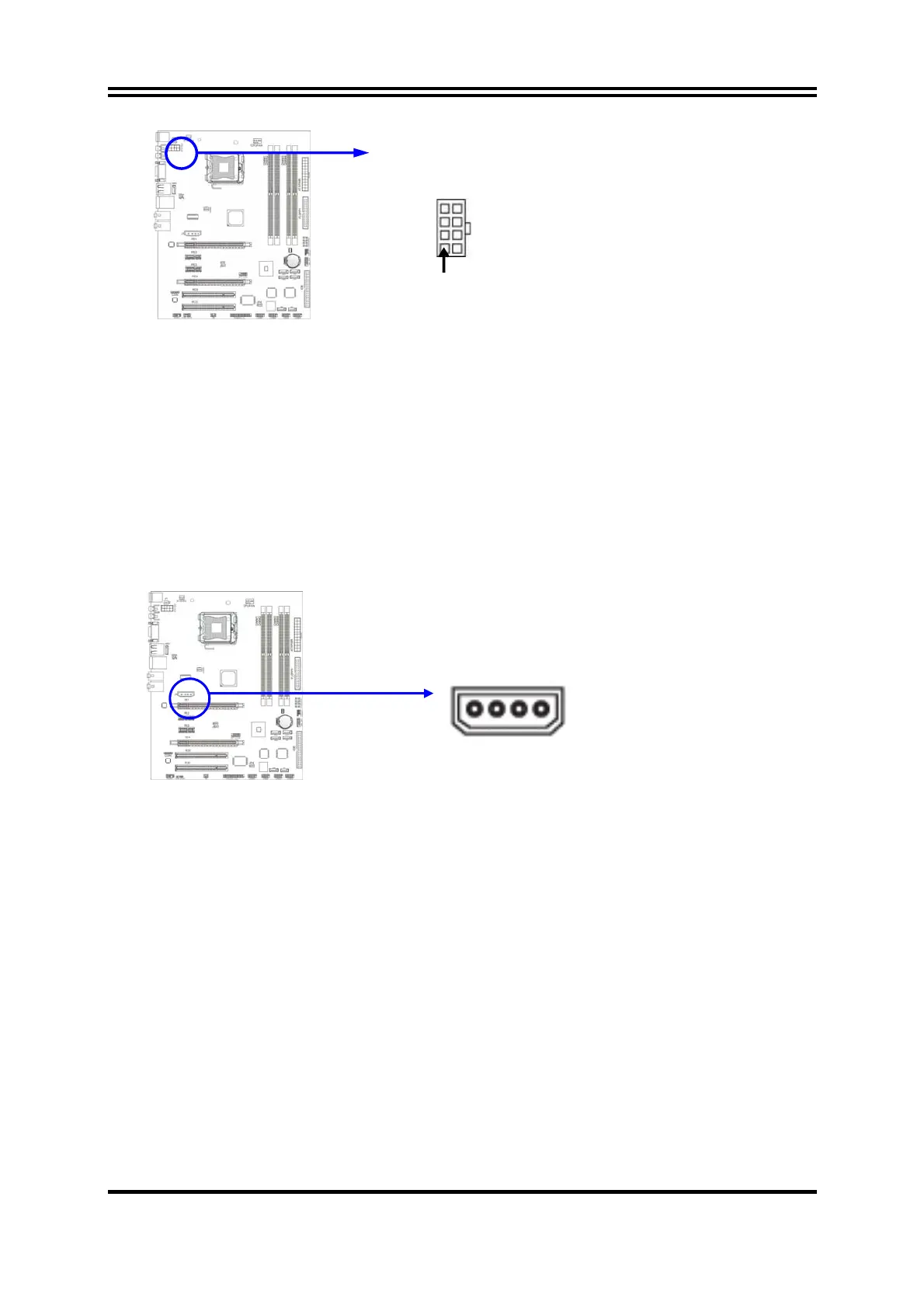

(6) J1 Power Connector: Large 4-Pin Power Connector
The connectors are 4-pin connector that supports extra 12V / 5V power to your system
while activating CrossFire functions with two CrossFire Tech. Supported VGA Cards .
(7) Audio Line-In,
Lin
-Out, MIC, Surrback, Surround, CEN/LEF Connector : J1
These Connectors are 6 Phone-Jack for LINE-OUT, LINE-IN, MIC, Surrback, Surround,
CEN/LEF audio connections.
Line-in : (BLUE)
Audio input to sound chip
Line-out : (GREEN)
Audio output to speaker
MIC : (PINK)
Microphone Connector
Surrback : (ORANGE)
Audio output to speaker-Rear speaker out
CEN/LEF : (BLACKNESS)
Audio output to speaker-Center/Subwoofer speaker out
Surround: (GRAY)
Audio output to speaker-Side speaker out
Pin 1
