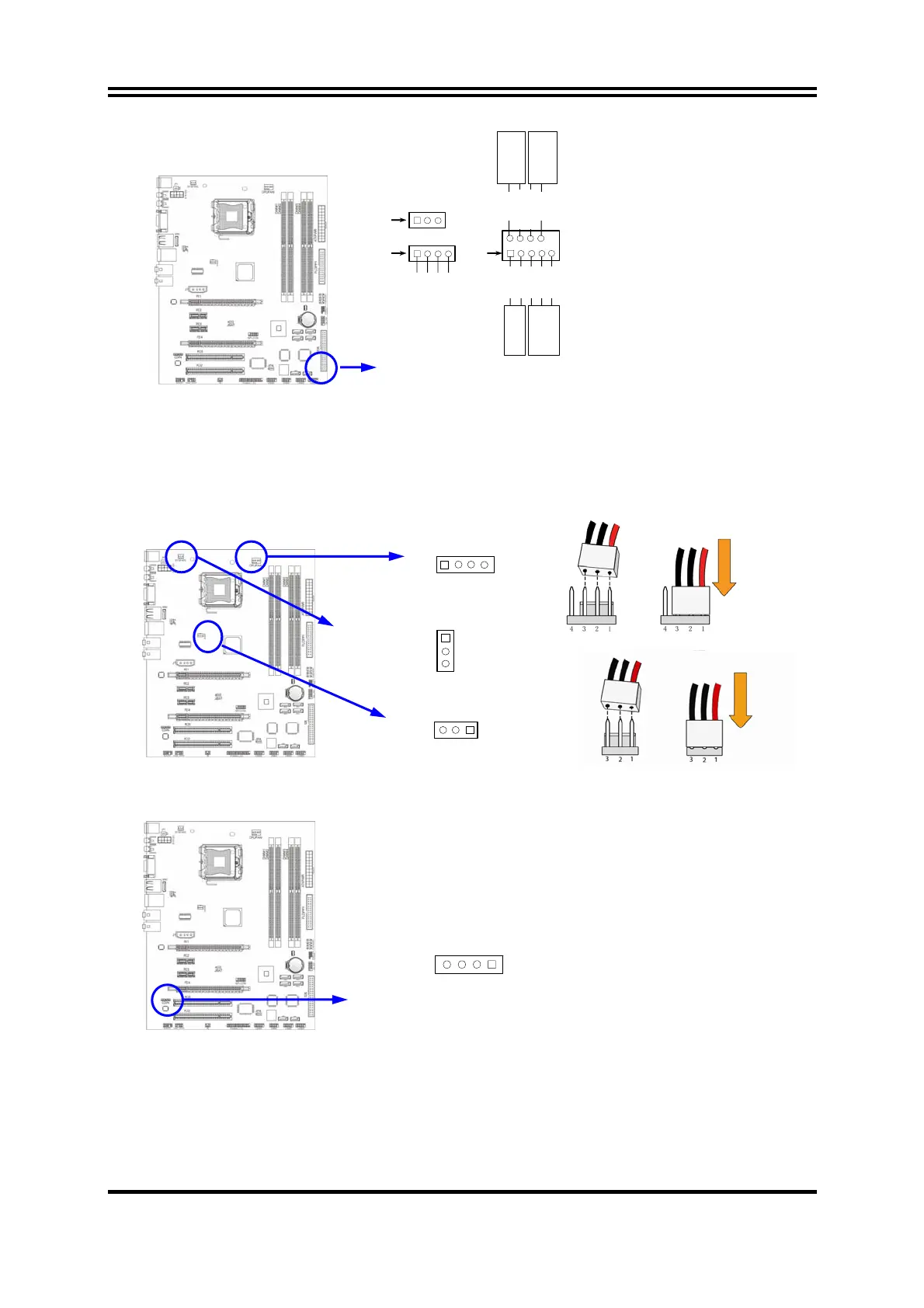

System Case Connections

HDLED

RESET

VCC5

GND

VCC5

PWR LED

PWRBTN

PWRLED

HDDLE

RSTSW

GND

JW FP

Pin 1

SPEAK

SPKR

GND

VCC5

Pin 1

PWRLED

Pin 1

(8) FAN Headers (3-pin) : SFAN1, SFAN2, CPUFAN

These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the

fan manufacturer, the wire and plug may be different. The red wire should be positive,

while the black should be ground. Connect the fan’s plug to the board taking into

consideration the polarity of connector.

SFAN2

SFAN1

CPUFAN

(9) CD Audio-In Headers (4-pin) : CDIN

CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM

CD-Audio output connector.

CD Audio-In Headers

CDI N

4 1

(10) IR infrared module Headers (5-pin) : IR

This connector supports the optional wireless transmitting and receiving infrared

module. You must configure the setting through the BIOS setup to use the IR function.

Intel P35 User Manual
