29

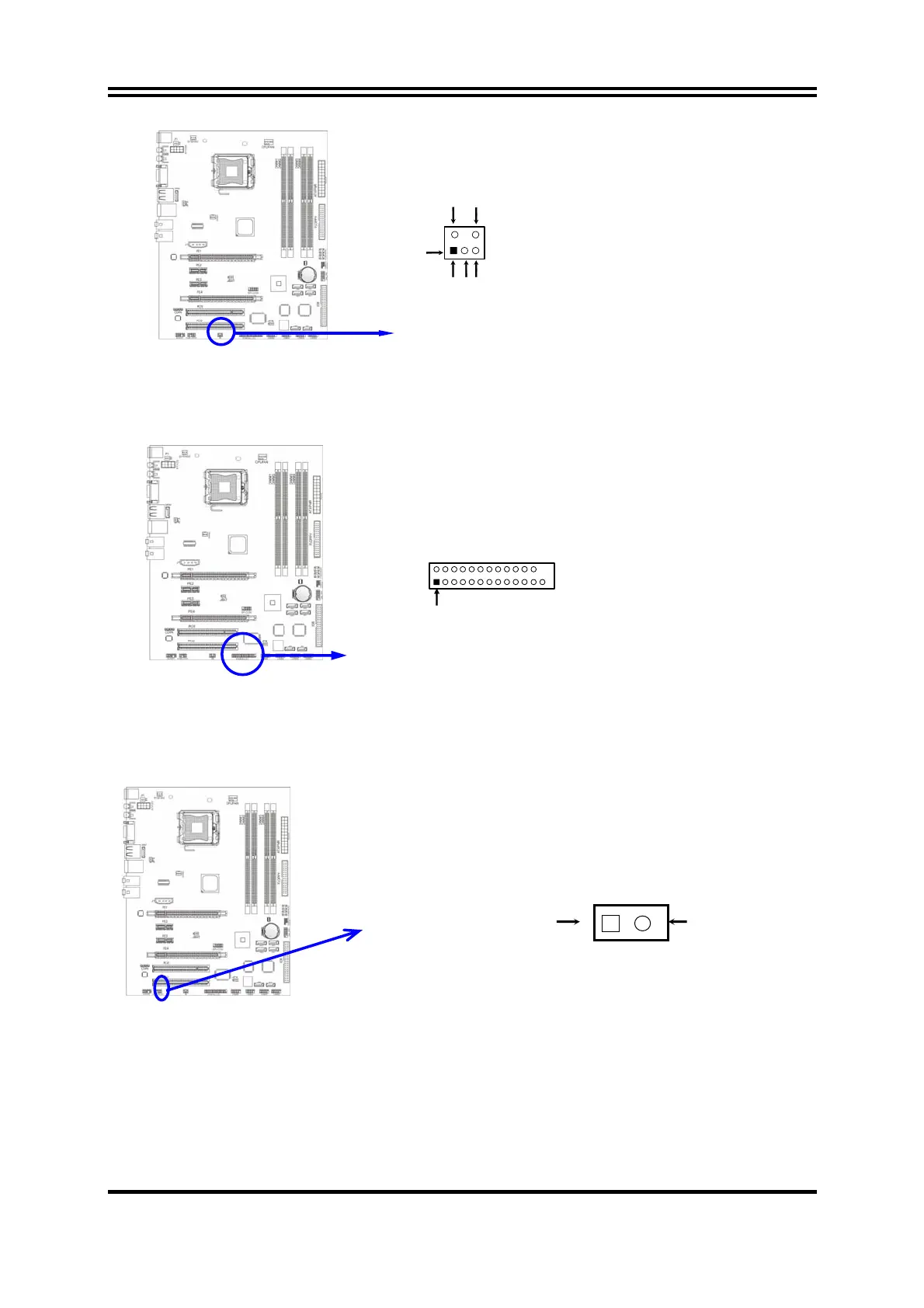

IR infrared module Headers
IR
Pin 1
GND
+5VX
IRRX
GND
IRTX
2
5
6
(11) Parallel Port Header (25-pin male): PARALLEL
The On-board Parallel Port can be disabled through the BIOS SETUP. Please refer to
Chapter 3 “INTEGRATED PERIPHERALS SETUP” section for more detail
information.
.
Pin 1
PARALLEL Connector
(12) SPDIF Out header: SPDIF Out
The SPDIF output is capable of providing digital audio to external speakers or compressed
AC3 data to an external Dolby digital decoder. Use this feature only when your stereo system
has digital input function.
1
2
HDMI_SPDIF_OUT GND
SPDIF
