3.2.2 4x3.5” Hot-swap HDD SAS/SATA Cable Guide
The 4x3.5” hot-swap hard drive configuration is an upgrade option that requires a hot-swap hard drive cage kit - iPC FUP4X35S3HSDK.
The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must to be ordered separately.

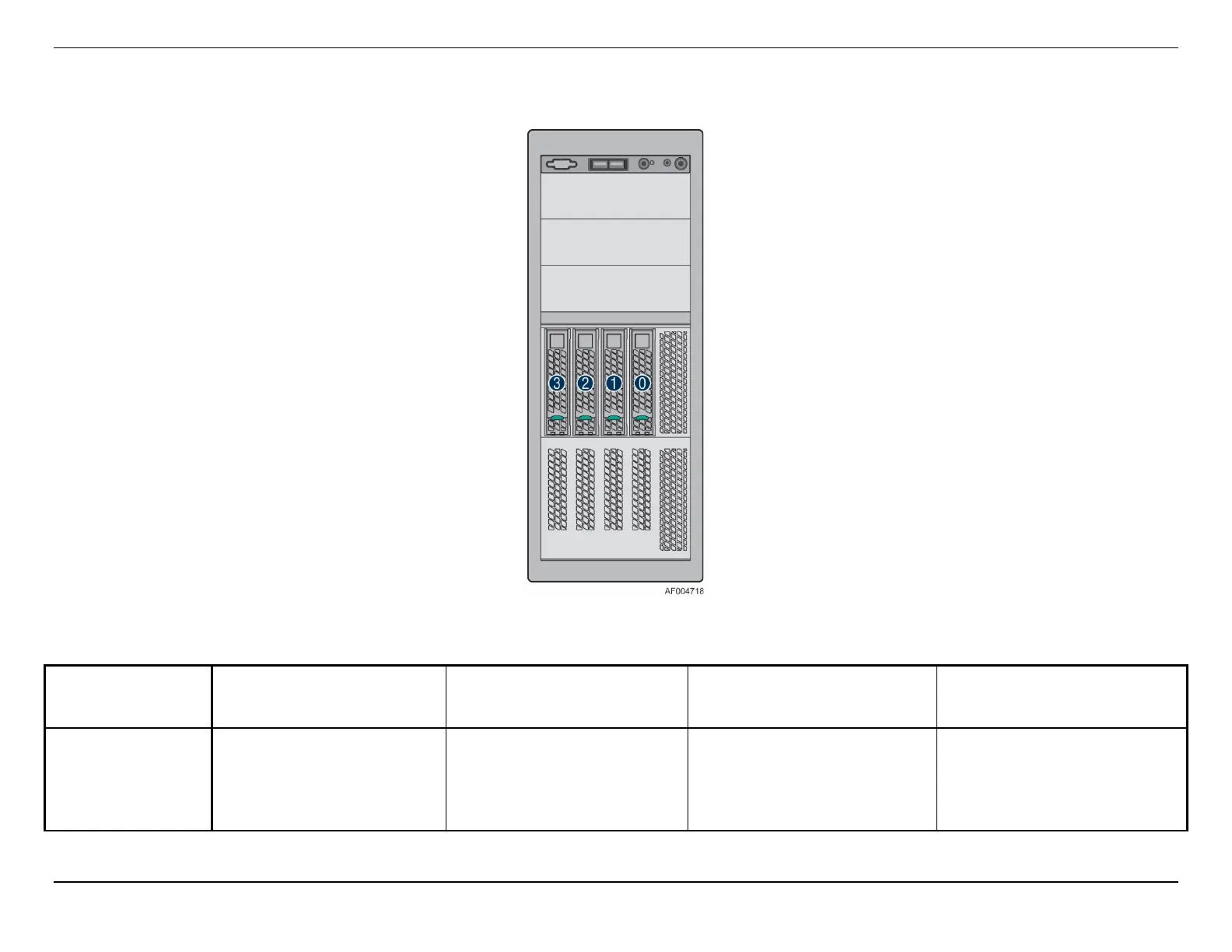

Figure 4. SATA/SAS 0-4
Table 11. 4x3.5” Hot-swap HDD Configuration Cable Guide
Drive Support
Cables for On-Board SATA
Controller to Backplane
Cables for On-Board SAS
Controller on S2600CW2SR or
S2600CWTSR to Backplane
Cables for 12 Gb SAS RAID
PCIe* add-in card to Backplane
Cables for 6 Gb SAS RAID PCIe*
add-in card to Backplane
Hot-swap 4x3.5”
SATA -> BP
380mm HD --- HD
(1) AXXCBL380HDHD
The kit includes two cables.
Only one required.
SAS onboard-> BP
380mm HD --- HD
(1) AXXCBL380HDHD
The kit includes two cables.
Only one required.
SAS Add-in card -> BP
650mm HD --- HD
(1) AXXCBL650HDHD
The kit includes two cables.
Only one required.
SAS Add-in card -> BP
650mm HD --- MS
(1) AXXCBL650HDMS
The kit includes two cables.
Only one required.
