Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List
20
3.2.5 16x2.5Hot-swap SAS/SATA HDD Cable Guide
The 16x2.5” hot-swap hard drive configuration is an upgrade option that requires two hot-swap hard drive cage kits - iPC FUP8X25S3HSDK.
The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must be ordered separately.
Note: For data cable information associated with Intel® Accessory Kit FUP8X25S3NVDK, see section 3.2.6

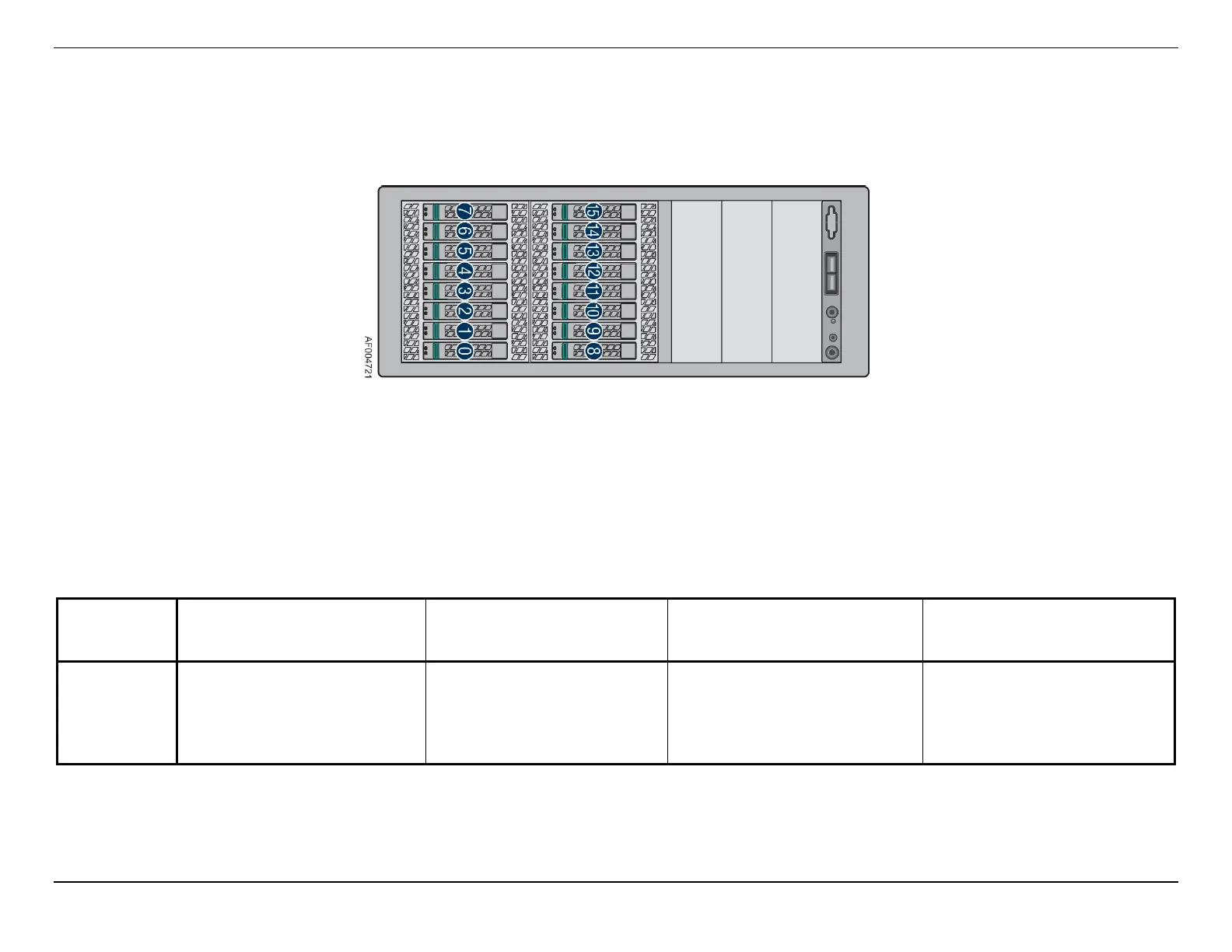

Figure 7. SATA/SAS 0-15
3.2.5.1 16x2.5” Hot Swap HDD SAS/SATA Cable Guide (with No SAS expander)
For S2600CW2SR and S2600CWTSR,16x2.5” drives can be used without the need to install an expander or additional RAID PCIe card. The 16 drives will be split
in two different groups of 8 drives each; one managed by the On-Board SATA controller and the other managed by the On-Board SAS controller.
Table 14. 16x2.5” Hot-swap HDD Cable Guide (with no SAS Expander)
Drive Support
Cables for On-Board SATA
Controller to Backplane
Cables for On-Board SAS
Controller on S2600CW2SR or
S2600CWTSR to Backplane
Cables for 12 Gb SAS RAID PCIe*
add-in card to Backplane
Cables for 6 Gb SAS RAID PCIe*
add-in card to Backplane
Top and
Bottom
Hot-swap
8x2.5
SATA -> BP
sSATA-> BP
380mm HD --- HD
(2) AXXCBL380HDHD per cage
The kit includes two cables
SAS onboard -> BP
380mm HD --- HD
(2) AXXCBL380HDHD per cage
The kit includes two cables
SAS Add-in Card -> BP
650mm HD --- HD
(2) AXXCBL650HDHD per cage
The kit includes two cables
SAS Add-in Card -> BP
650mm HD --- MS
(2) AXXCBL650HDMS per cage
The kit includes two cables
Top Drive Cage
Bottom Drive Cage
