Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List
23
3.2.6 8x2.5” Hot-swap HDD SAS/SATA Cable Guide for Combo PCIe* SFF (NVMe) SSD / SAS Backplane (iPC FUP8X25S3HSDK)
The 8x2.5” combo backplane kit is capable of supporting a combination of both SAS devices and up to four PCIe* SFF (Small Form Factor) (NVMe) SSD drives.
All eight drive connectors are capable of supporting a SAS device, but only four include SFF8639 connectors that can support PCIe* SFF (NVMe) SSDs.
Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS need to be ordered separately.

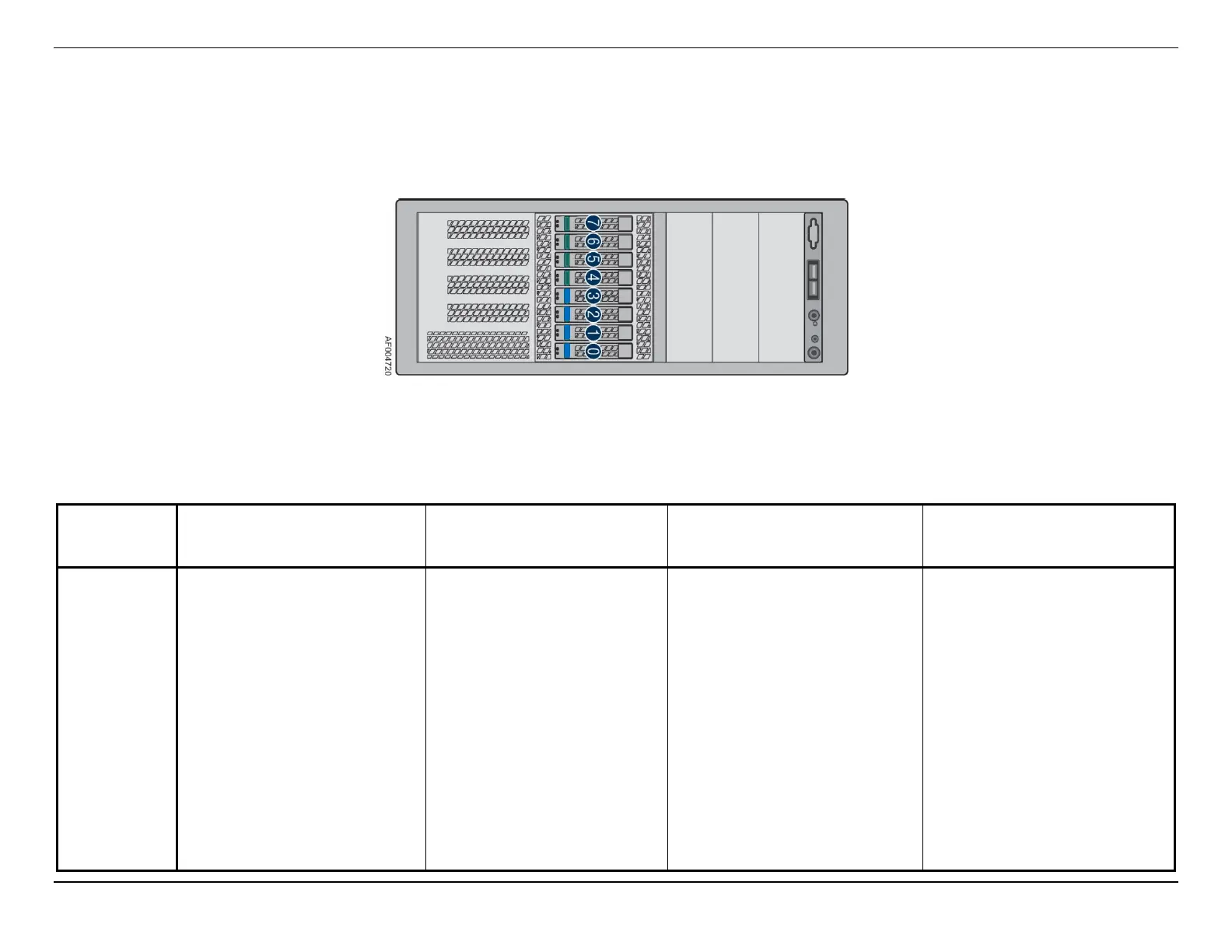

Figure 8 SATA/SAS 0-7
Table 17. Combo Backplane Module Placement – 8 x 2.5” front drive configurations
Drive Support
Cables for On-Board SATA
Controller to Backplane
Cables for On-Board SAS
Controller on S2600CW2SR or
S2600CWTSR to Backplane
Cables for 12 Gb SAS RAID PCIe*
add-in card to Backplane
Cables for 6 Gb SAS RAID PCIe*
add-in card to Backplane
Hot-swap
8x2.5” Combo
SAS / SATA +
PCIe* SSD
SFF (NVMe)
12 Gb SAS
capable
PCIe* cables
included in
accesory kit.
For SAS/SATA
support see
the following
options
SATA -> BP
sSATA -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables.
Use PCIe* cables included with
Combo backplane kit for PCIe* SSD /
NVMe drive support
SAS onboard -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables.
Use PCIe* cables included with
Combo backplane kit for PCIe* SSD
/ NVMe drive support
SAS Add-in card -> BP
650mm HD --- HD
(2) AXXCBL650HDHD
The kit includes two cables.
Use PCIe* cables included with
Combo backplane kit for PCIe* SSD /
NVMe drive support
SAS Add-in card -> BP
650mm HD --- MS
(2) AXXCBL650HDMS
The kit includes two cables.
Use PCIe* cables included with
Combo backplane kit for PCIe* SSD /
NVMe drive support
