Intel P4304XXMUXX Spares/Accessories List And Configuration Guide

Intel® Server S2600CW Product Family Configuration Guide and Spares/Accessories List
19
3.2.4 8x2.5” Hot-swap HDD SAS/SATA Cable Guide
The 8x2.5” hot-swap hard drive configuration is an upgrade option that requires a hot-swap hard drive cage kit - iPC FUP8X25S3HSDK.
The Mini-SAS cable kits - iPC AXXCBL380HDHD, AXXCBL650HDHD or AXXCBL650HDMS must be ordered separately.
Note: For data cable information associated with Intel® Accessory Kit FUP8X25S3NVDK, see section 3.2.6

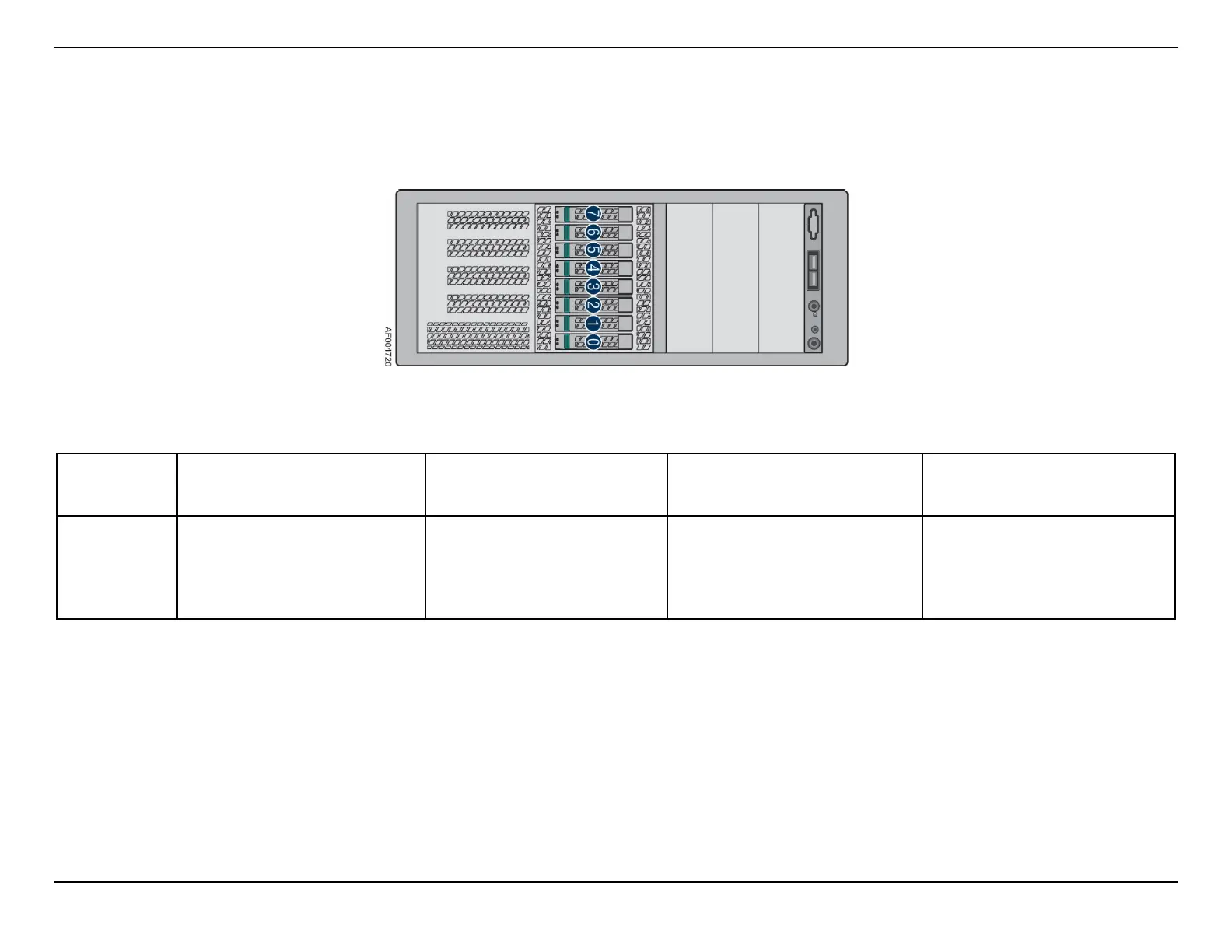

Figure 6. SATA/SAS 0-7
Table 13. 8x2.5” Hot-swap HDD Configuration Cable Guide
Drive Support
Cables for On-Board SATA
Controller to Backplane
Cables for On-Board SAS
Controller on S2600CW2SR or
S2600CWTSR to Backplane
Cables for 12 Gb SAS RAID PCIe*
add-in card to Backplane
Cables for 6 Gb SAS RAID PCIe*
add-in card to Backplane
Hot-swap
8x2.5”
SATA -> BP
sSATA -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables
SAS -> BP
380mm HD --- HD
(2) AXXCBL380HDHD
The kit includes two cables
SAS Add-in card -> BP
650mm HD --- HD
(2) AXXCBL650HDHD
The kit includes two cables
SAS Add-in card -> BP
650mm HD --- MS
(2) AXXCBL650HDMS
The kit includes two cables
