VS440FX Motherboard Technical Product Specification
10
1.4 I/O Shield
The back panel I/O shield for the VS440FX motherboard must meet specific dimensional and
material requirements. Computers based on this motherboard need the back panel I/O shield in
order to pass certification testing. Figure 3 shows the critical dimensions for both options of the
I/O shield and indicates the position of each cutout.
Left-end View
OM05588
Note: Material = 0.010 ±.0.001 Thick Stainless Steel, Half Hard
0.671
1.955
0.597
0.553
1.911
2.184
3.327
4.735
4.899
5.391
5.883
6.533
0.193
0.768
0.295
0.458
1.158
0.666
4.610
1.590
0.200
1.407
0.652
0.133
0.120
2.055
2.326
2.023
0.050

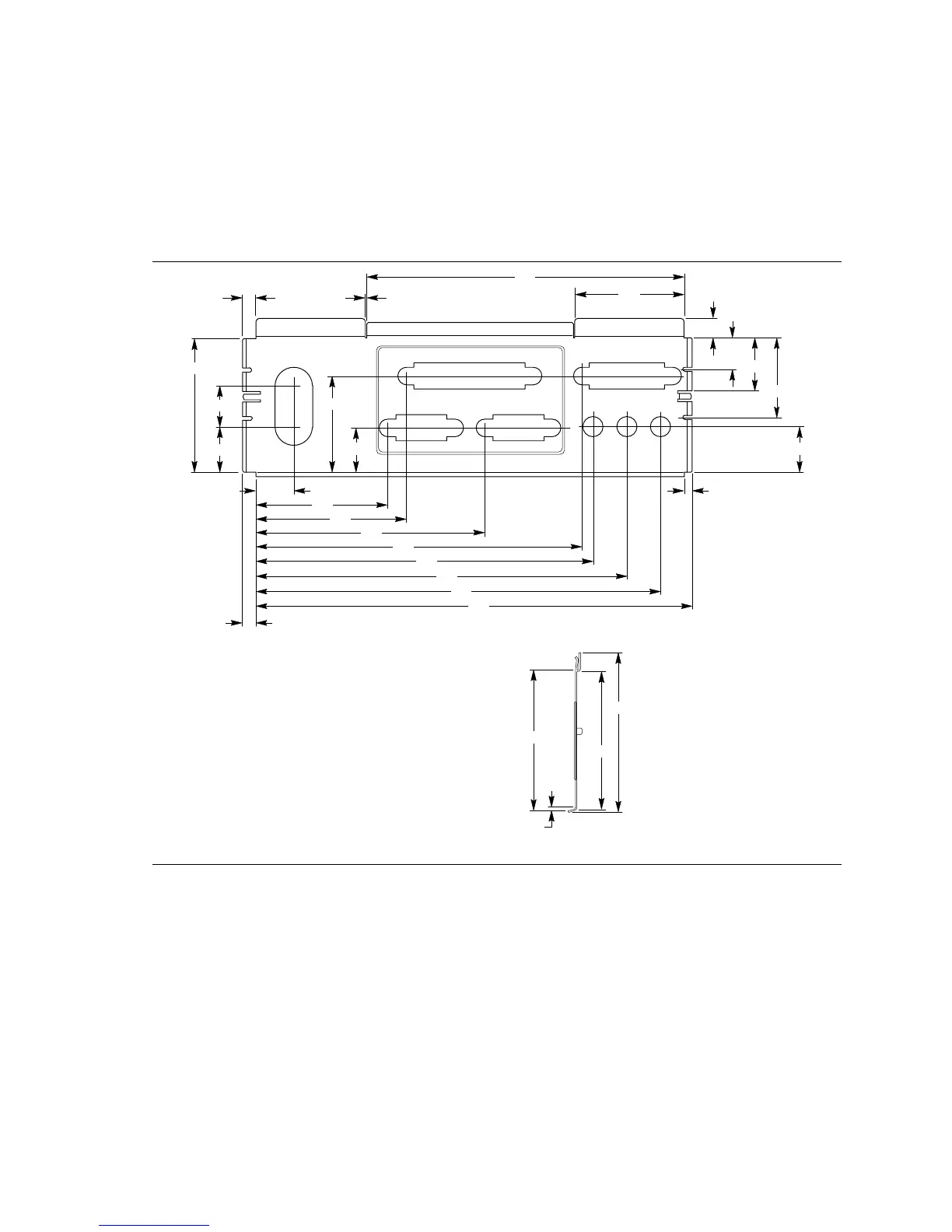

Figure 3. Back Panel I/O Shield (with Audio option) Dimensions
