Motherboard Description
9
1.2 Motherboard Manufacturing Options
• Support for USB
• Audio Option
 CS4236 audio codec
 CD-ROM connector
 Wavetable upgrade connector
 Telephony connector
 MIDI/game port/audio jacks
• Management Extension Hardware ASIC
1.3 Form Factor
The motherboard is designed to fit into a standard ATX form factor chassis. Figure 2 illustrates the
mechanical form factor for the motherboard. Location of the I/O connectors and mounting holes is
in strict compliance with the ATX specification (refer to Section 5.1).
OM05522
9.20
3.10
0.65
9.60
8.25
0.25
0.0
0.0 12.00
3.75 5.55
11.75

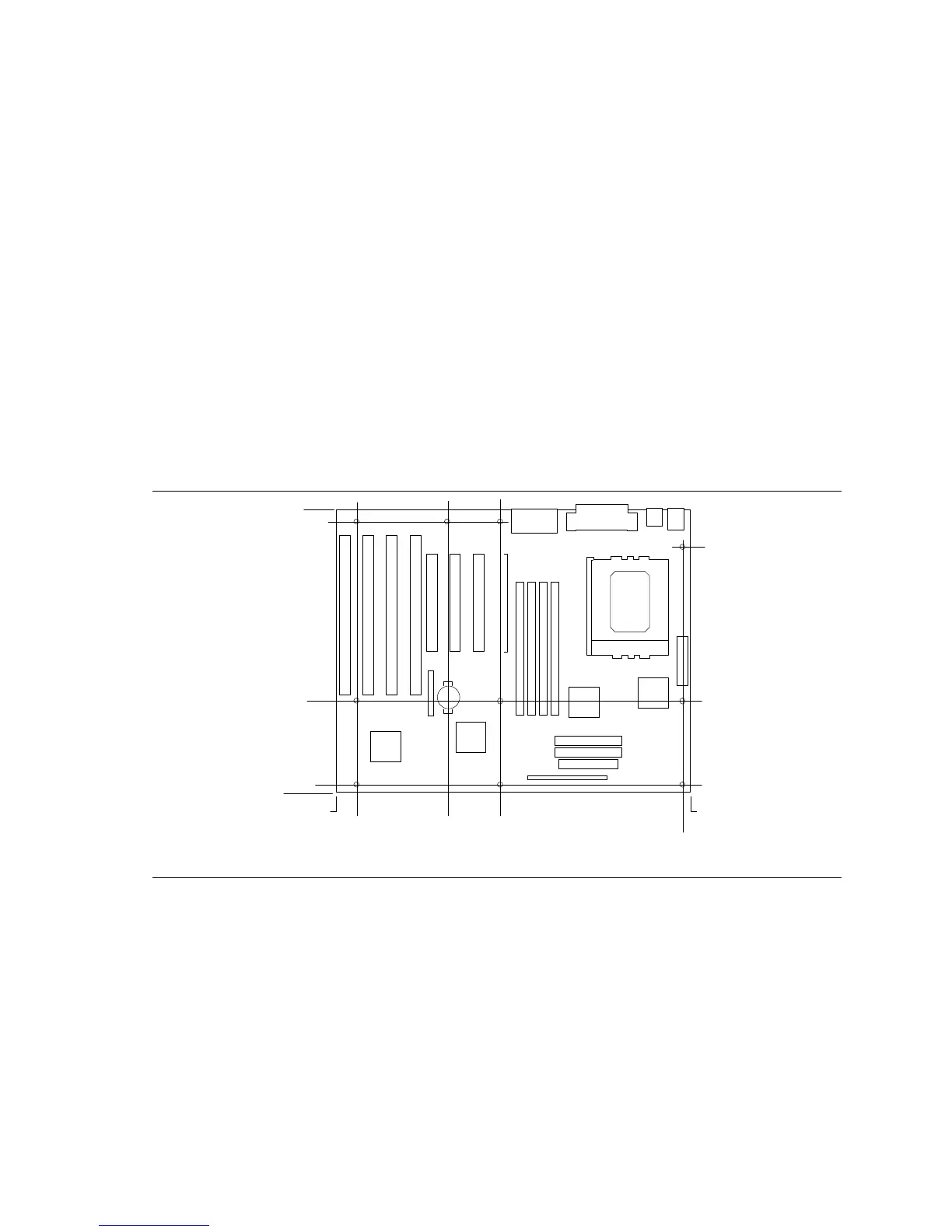

Figure 2. Motherboard Dimensions
