Intel VS440FX - Figures; Motherboard Components

VS440FX Motherboard Technical Product Specification
8
OM05506
J
L
K
M
Y
X
AA
DCBA
CC
BB
E
OS R PQW TV U
N
F H IG
Z

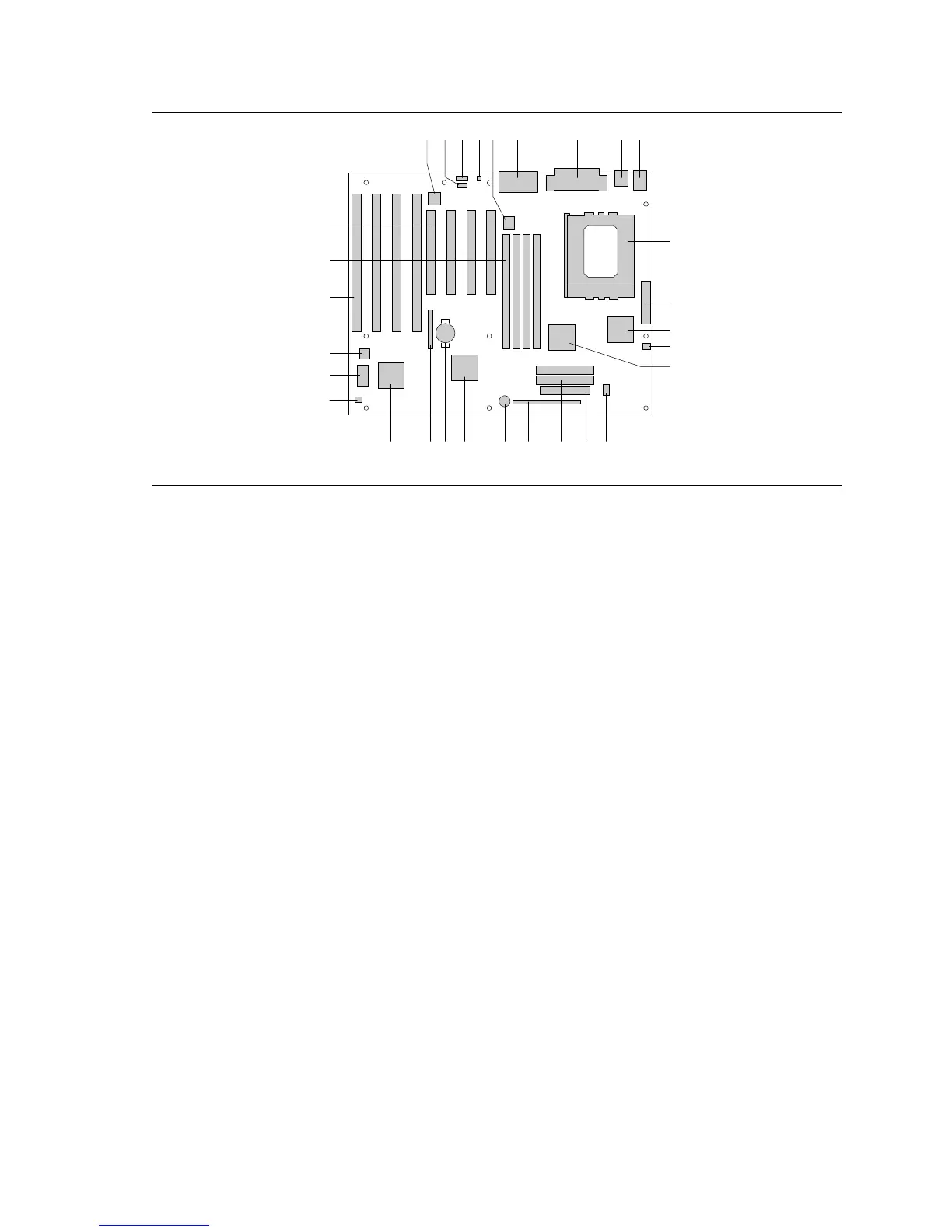

Figure 1. Motherboard Components
A. Optional Crystal Audio device P. Floppy connector
B. Optional CD-ROM audio connector Q. IDE connectors
C. Optional wavetable connector R. Front panel connectors
D. Optional telephony connector S. Onboard speaker
E. VCCP voltage regulator T. Intel 82371SB PIIX3
F. MIDI/game port/audio jacks U. Battery
G. Parallel port/serial connectors V. Jumper block
H. Optional USB connectors W. National PC87308/87307 Super I/O controller
I. Keyboard and mouse connectors X. Auxiliary fan connector
J. Pentium Pro microprocessor / Socket 8 Y. Flash BIOS
K. Power connector Z. Management Extension Hardware ASIC
L. Intel 82441FX AA. ISA add-in board connectors
M. Microprocessor fan connector BB. SIMM connectors
N. Intel 82442FX CC. PCI add-in board connectors
O. VTT voltage regulator
