Intellian T130 - Preparing Antenna Supporting Pole

21
INSTALLING THE ANTENNA
Preparing Antenna Supporting Pole
WARNING: Ensure that cables have been run through watertight ttings to prevent
water entry into the vessel when installation is completed.

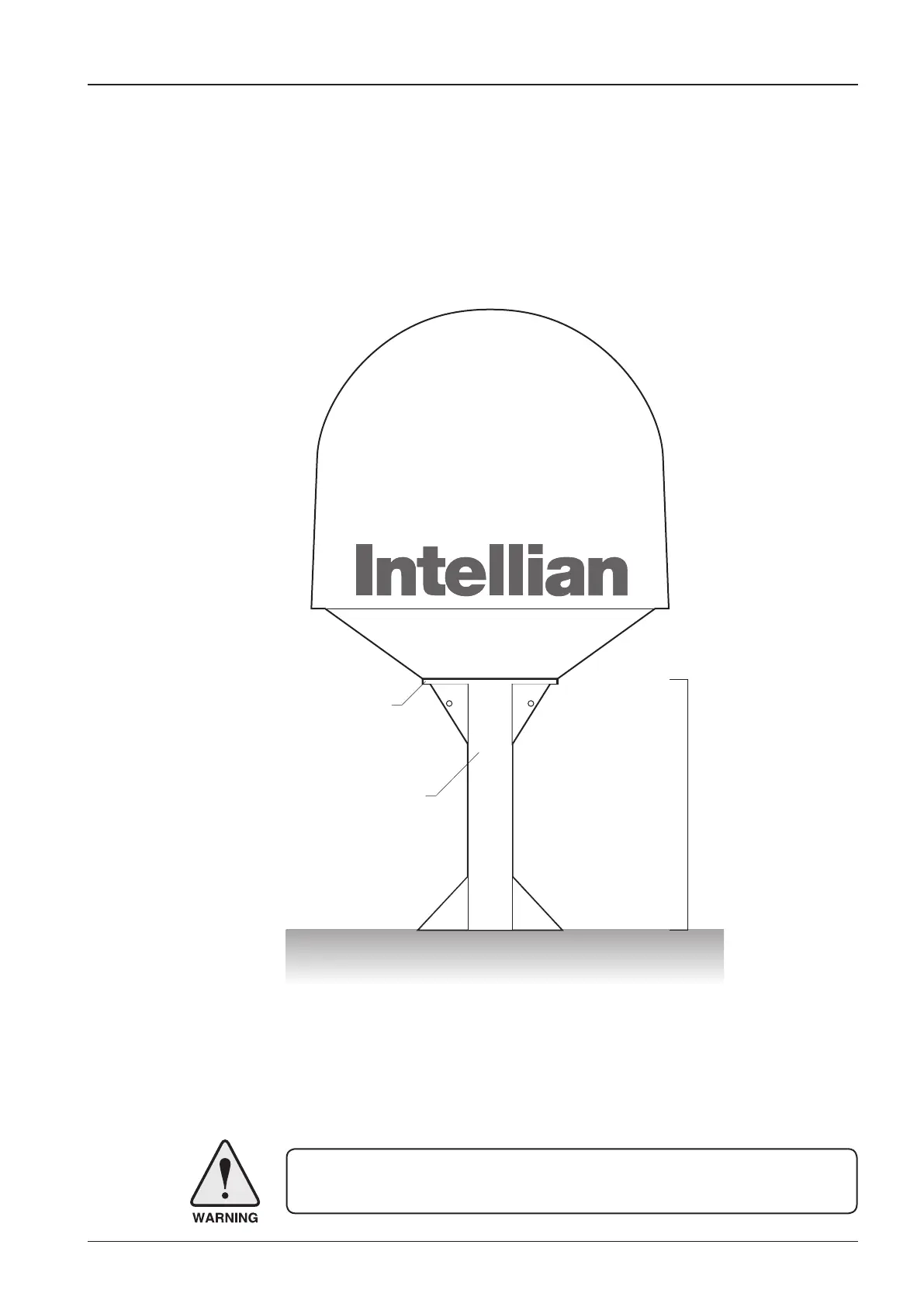

Figure 15. Recommended Dimension of Mounting Pole (Unit: cm/inch)
Min. 120 cm (47”)
Base panel
Min. 1cm(0.4”)
Max. 3cm(1.2”)
Support Pedestal
Appr. Ø25.4 cm (10”)
