Antenna Dimensions
The method of installation and mounting of the antenna may vary with vessel
design but the following procedures are applicable in most situations, and will
result in a secure and effective installation. Conrm the height and diameter of the
antenna before installing it.
Antenna Mounting Templates

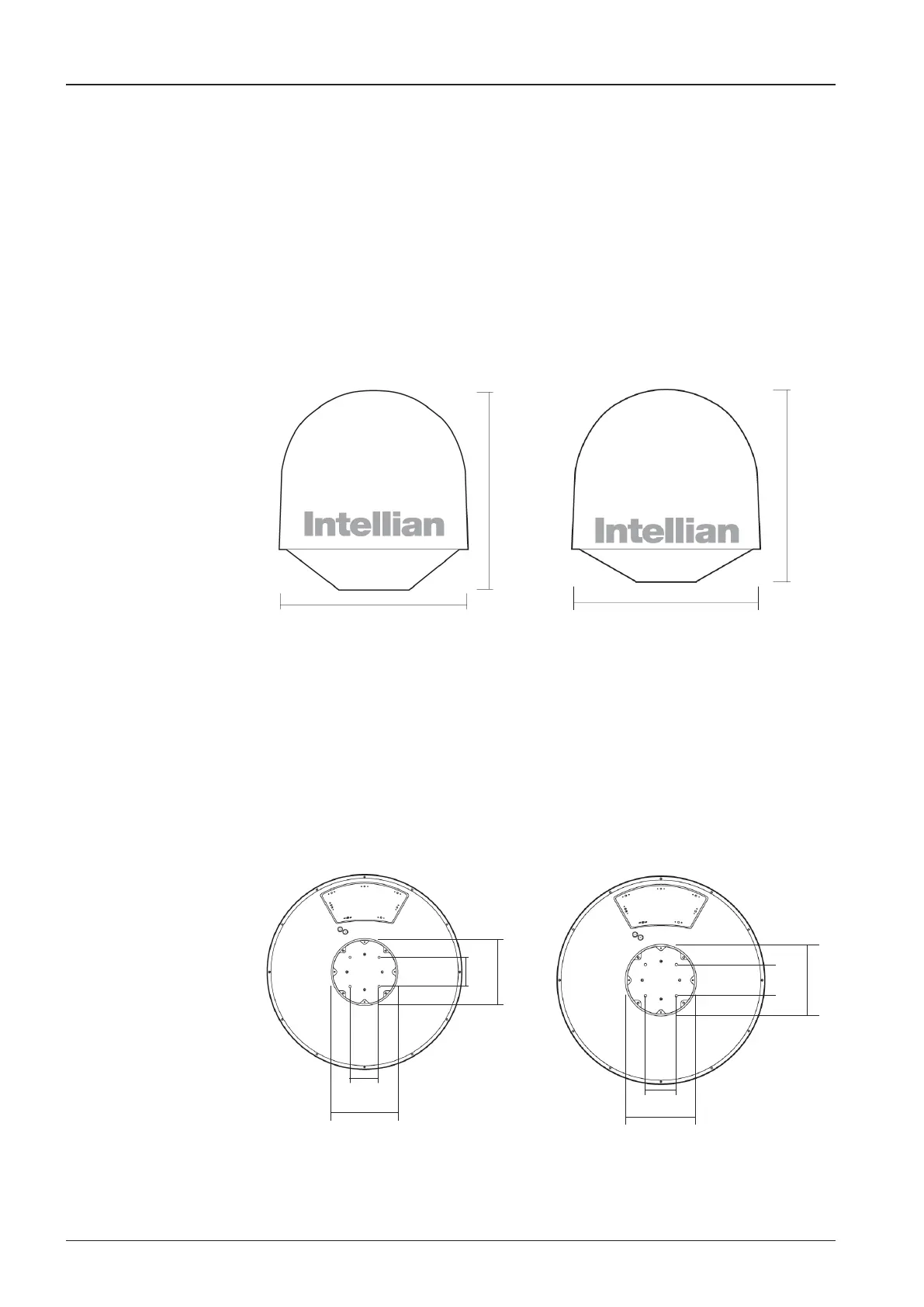

Figure 11. Radome Dimension of t110 Figure 12. Radome Dimension of t130
Figure 13. Mounting Pattern of t110 Figure 14. Mounting Pattern of t130
ø54cm (21.3")
ø54cm (21.3")
ø48cm (18.9")
ø48cm (18.9")
24.75cm (9.74")
142cm(56")
168.9cm(66.5")
24.75cm (9.74")
24.75cm (9.74")
133cm(52.4") 165.2cm(65")
24.75cm (9.74")
