INSTALLING THE ANTENNA
Warning: : Please ensure that your Intellian system is ALWAYS powered ON upon
leaving the dock. Failure to follow these instructions could result in damaging
mechanical parts in the antenna and/or possibly void your warranty. Intellian strongly
recommends to restrain the antenna pedestal properly while underway when power
is removed from the antenna. The normal operating condition for the t110/t130 is to
remain powered up at all times.
Remove Antenna Shipping Restraints
Open the radome's hatch and remove the shipping restraints from the pedestal.
Using your hand, gently check that the antenna moves freely in azimuth, elevation,
and cross level without hitting any areas of the interior of the radome.

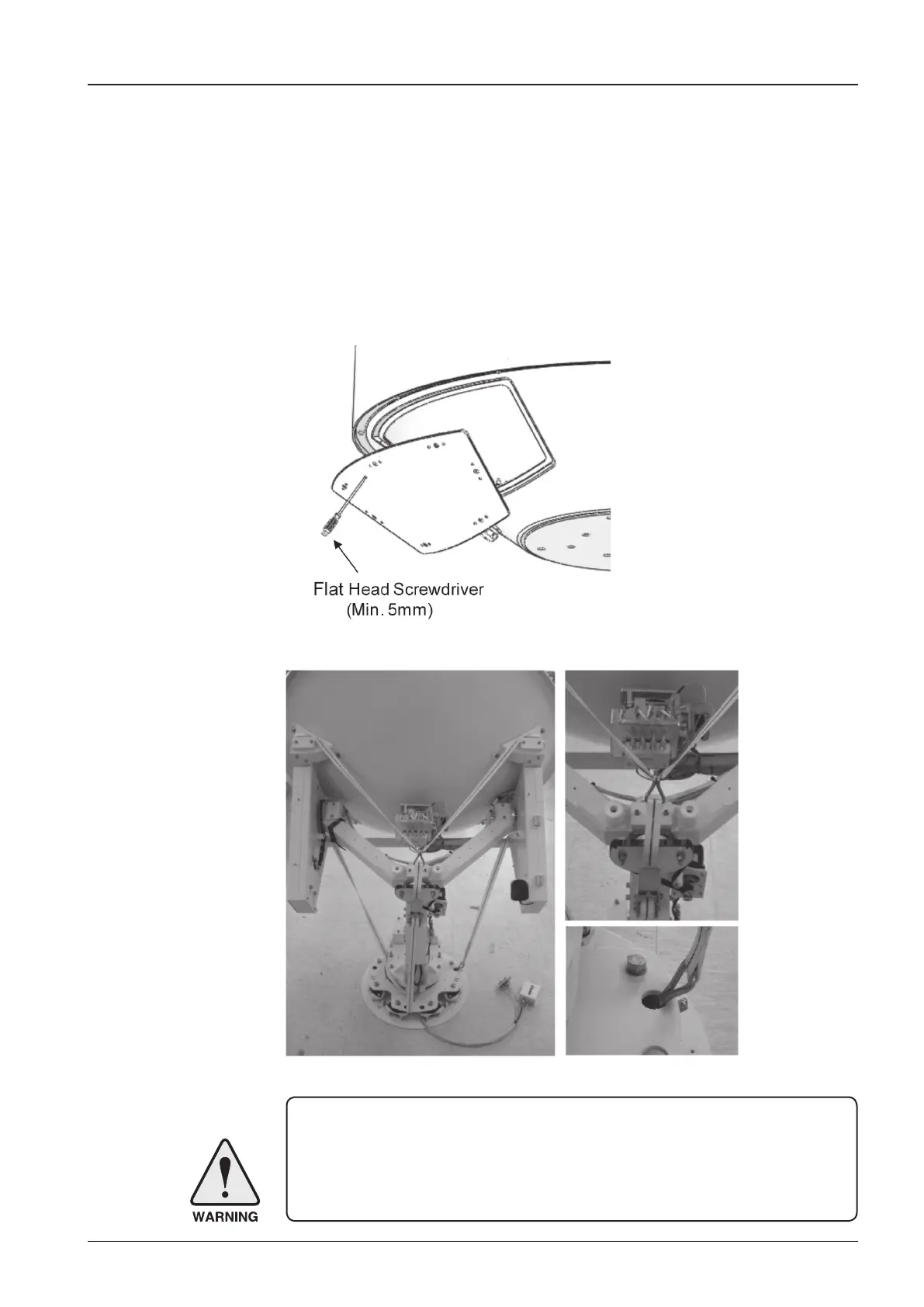

Figure 17. Open the Radome Hatch
Figure 18. Remove Shipping Restraints (Ratchet strap, 2 Brackets that x the Azimuth Axis.)
